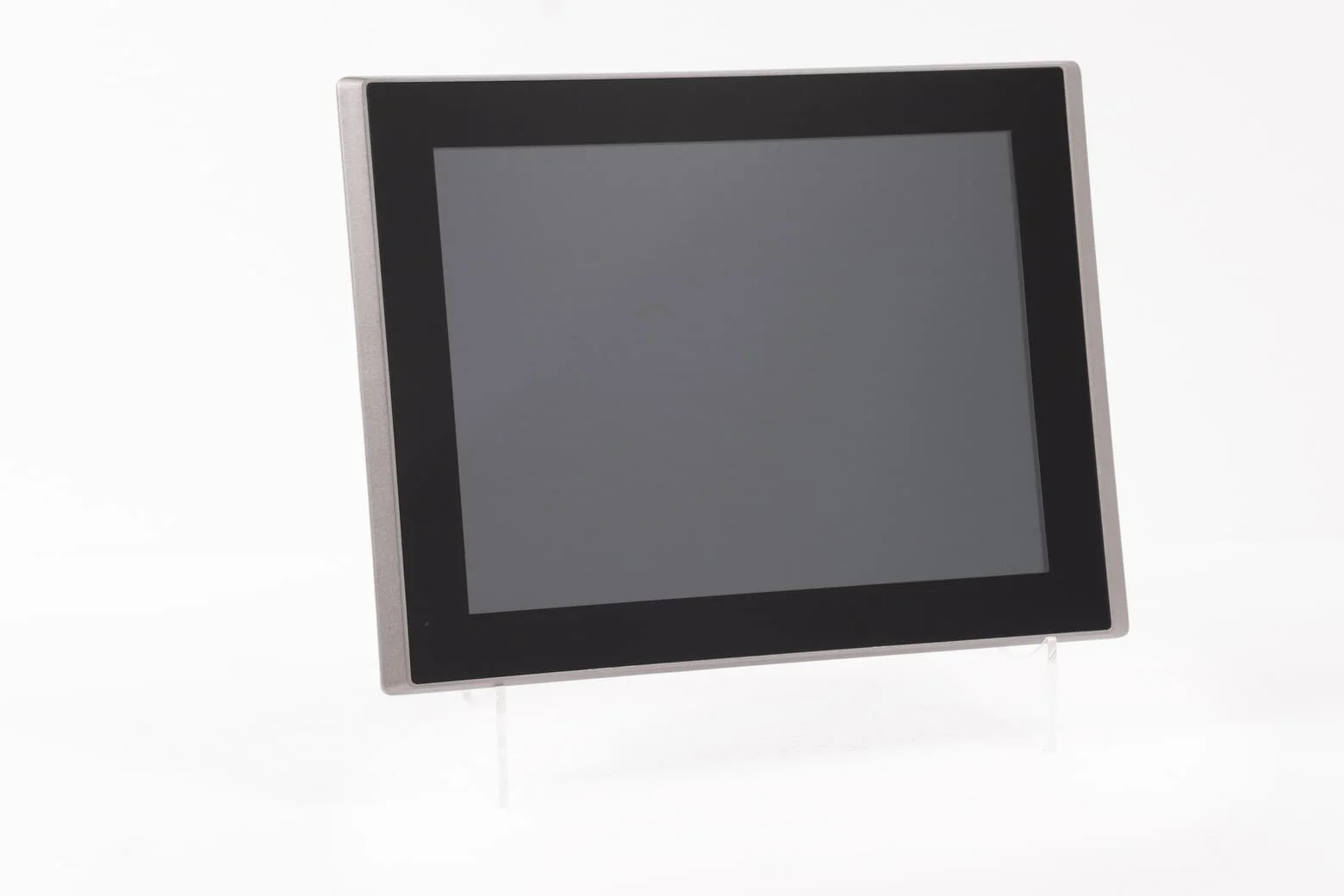

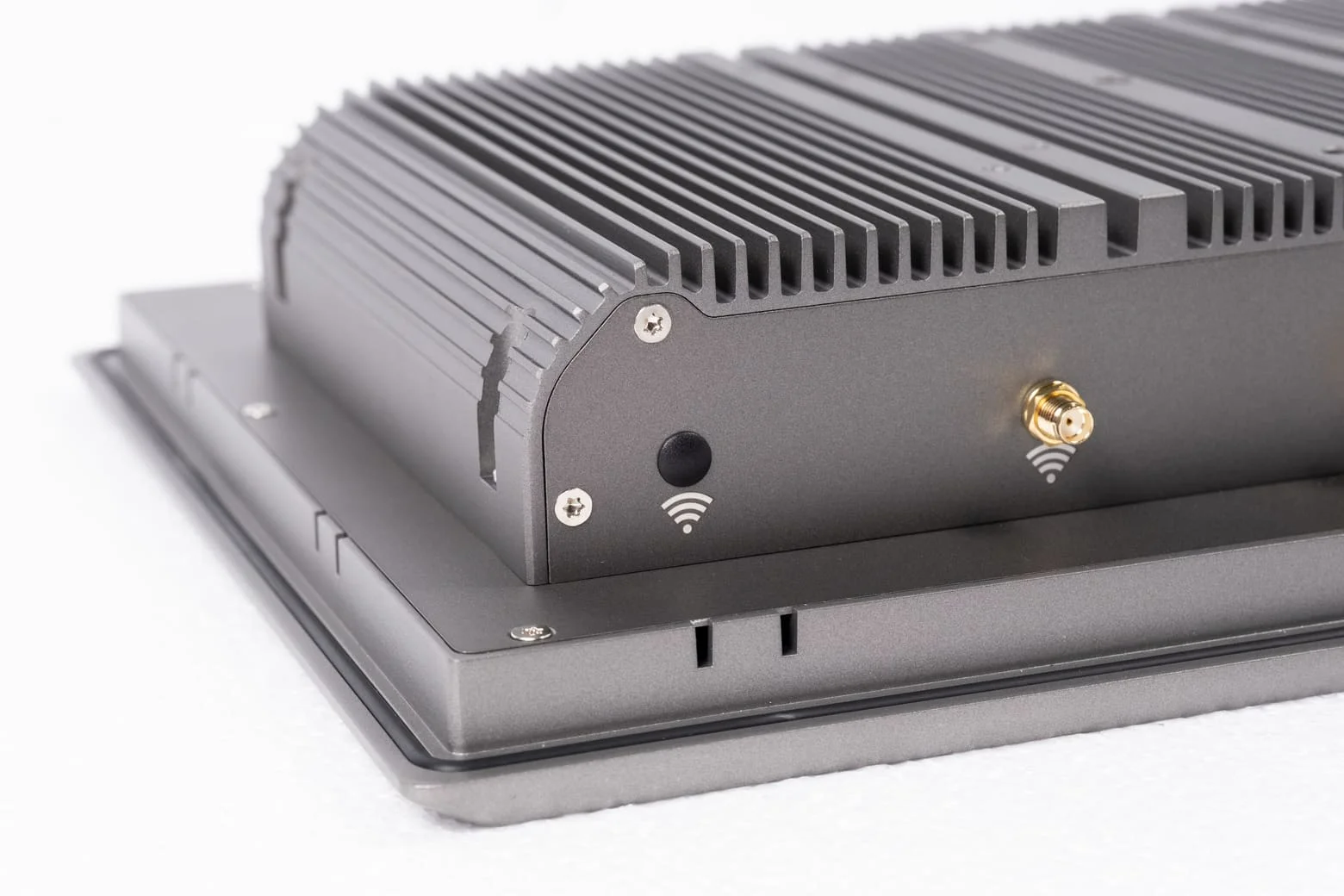

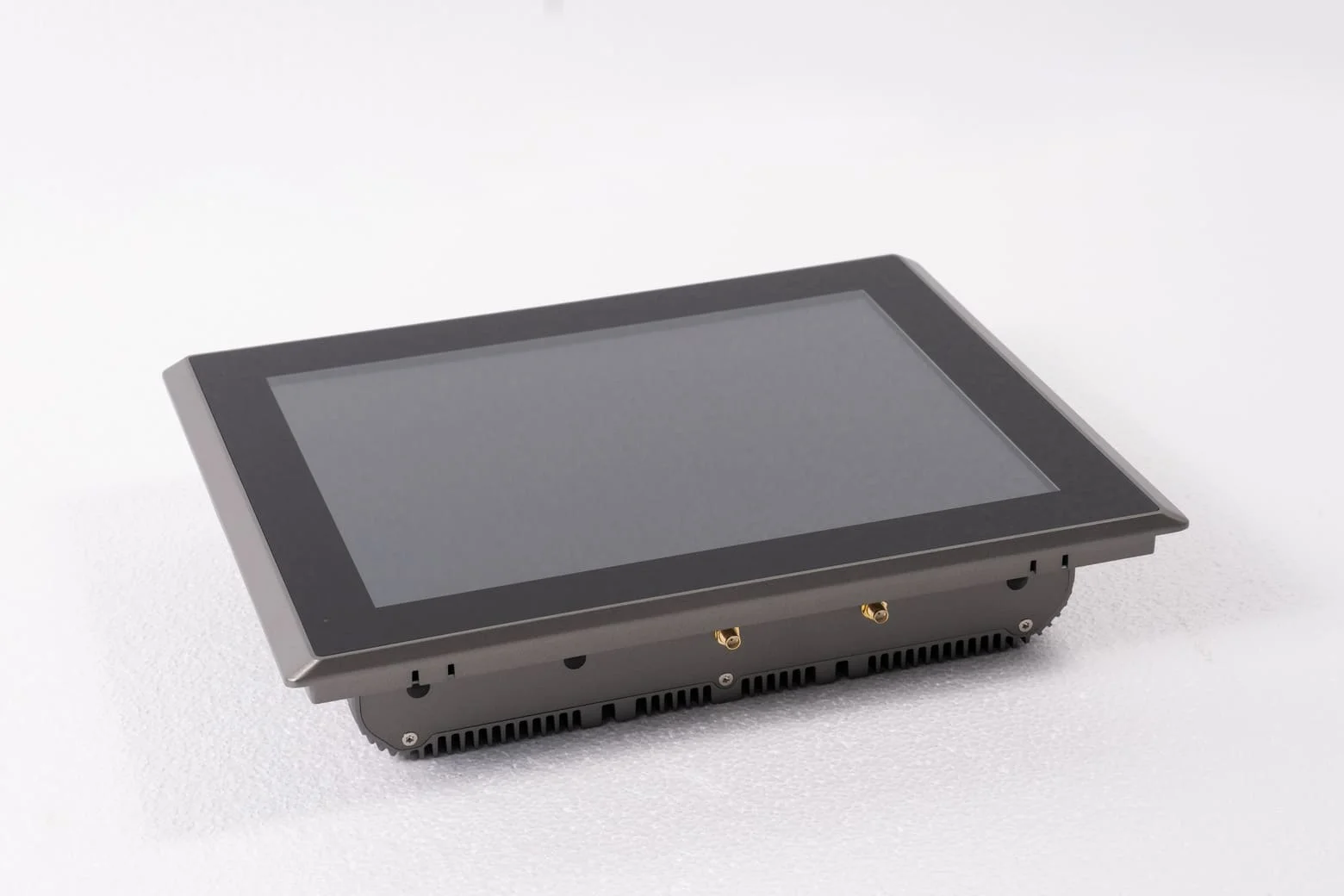

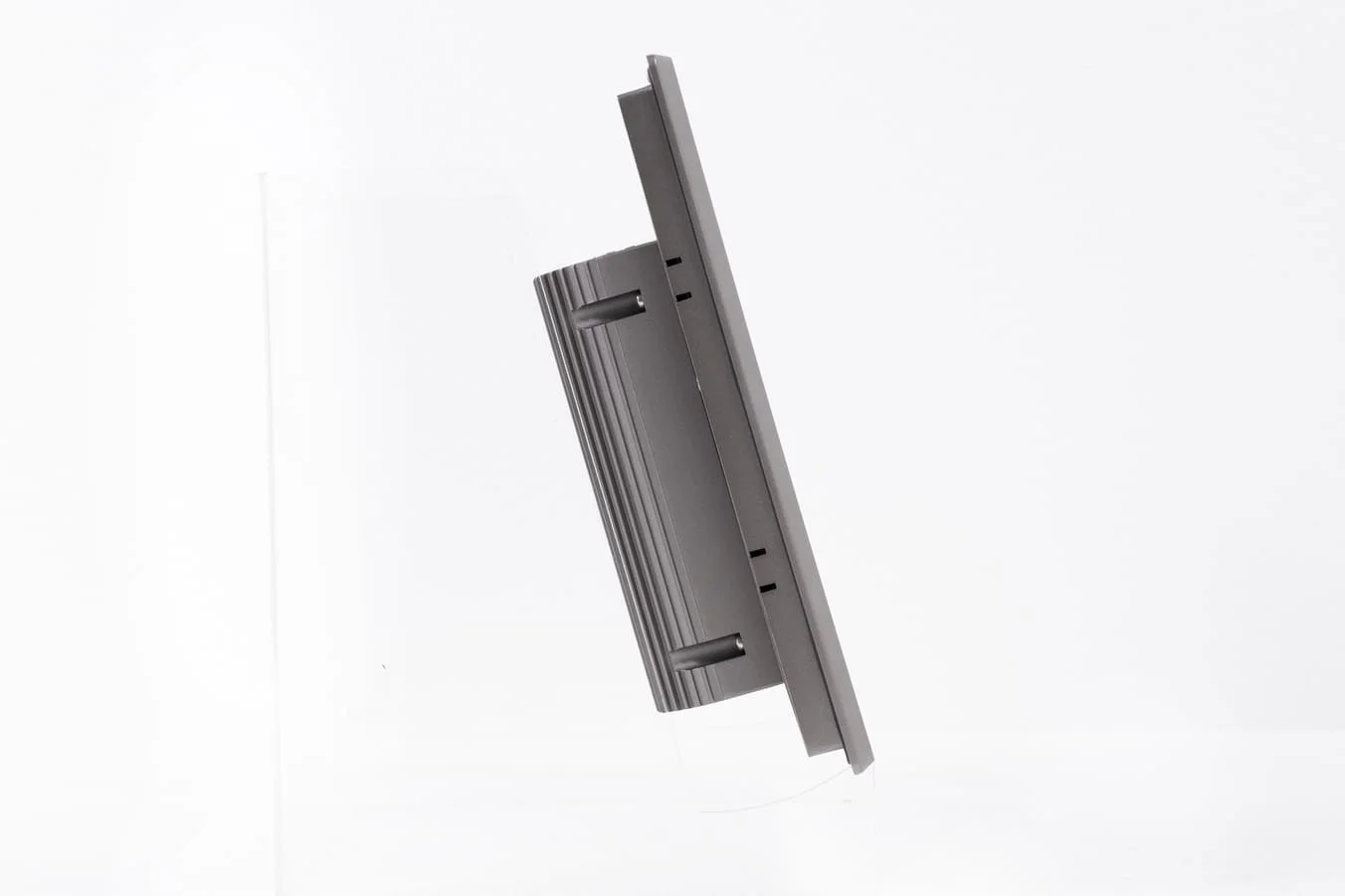

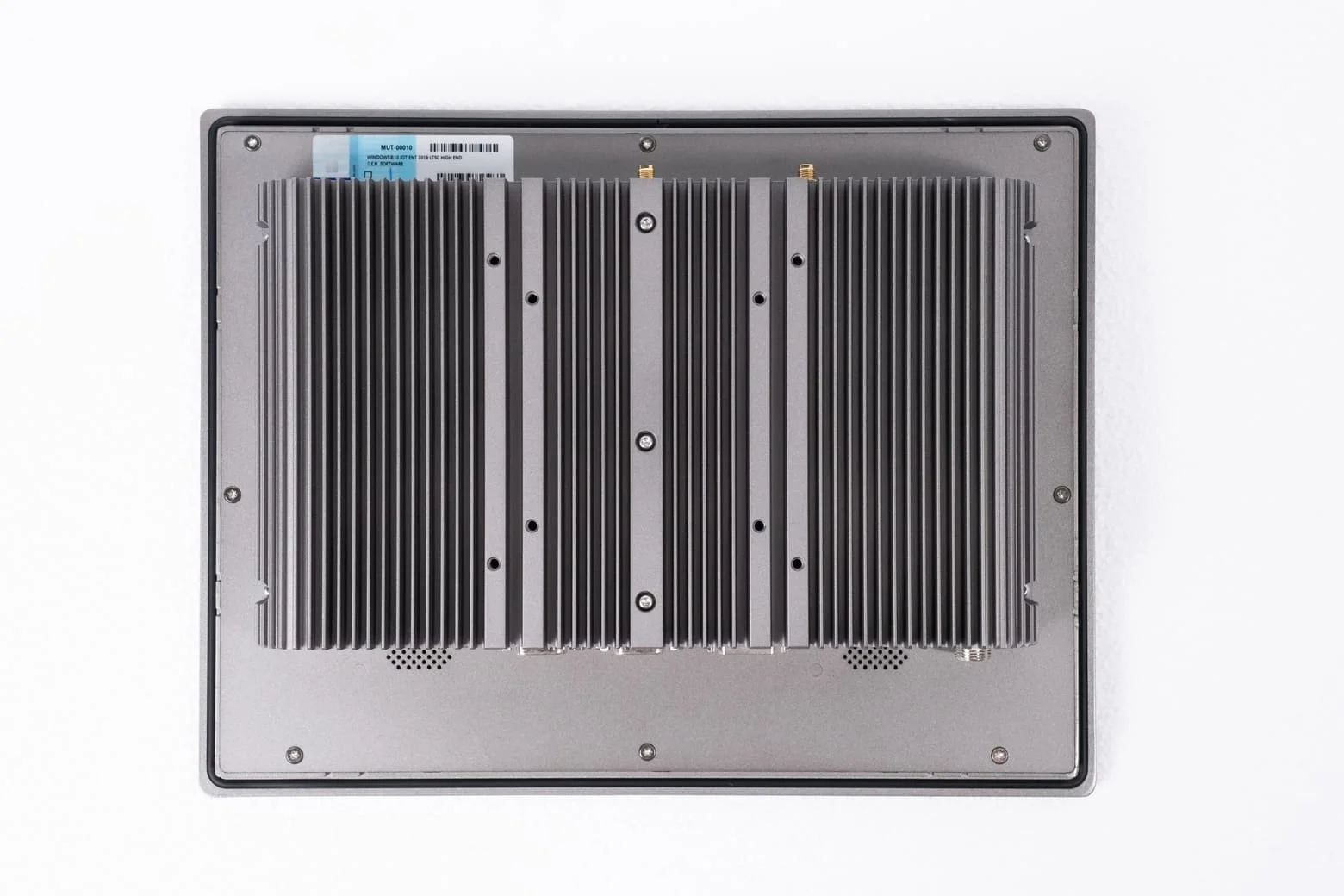

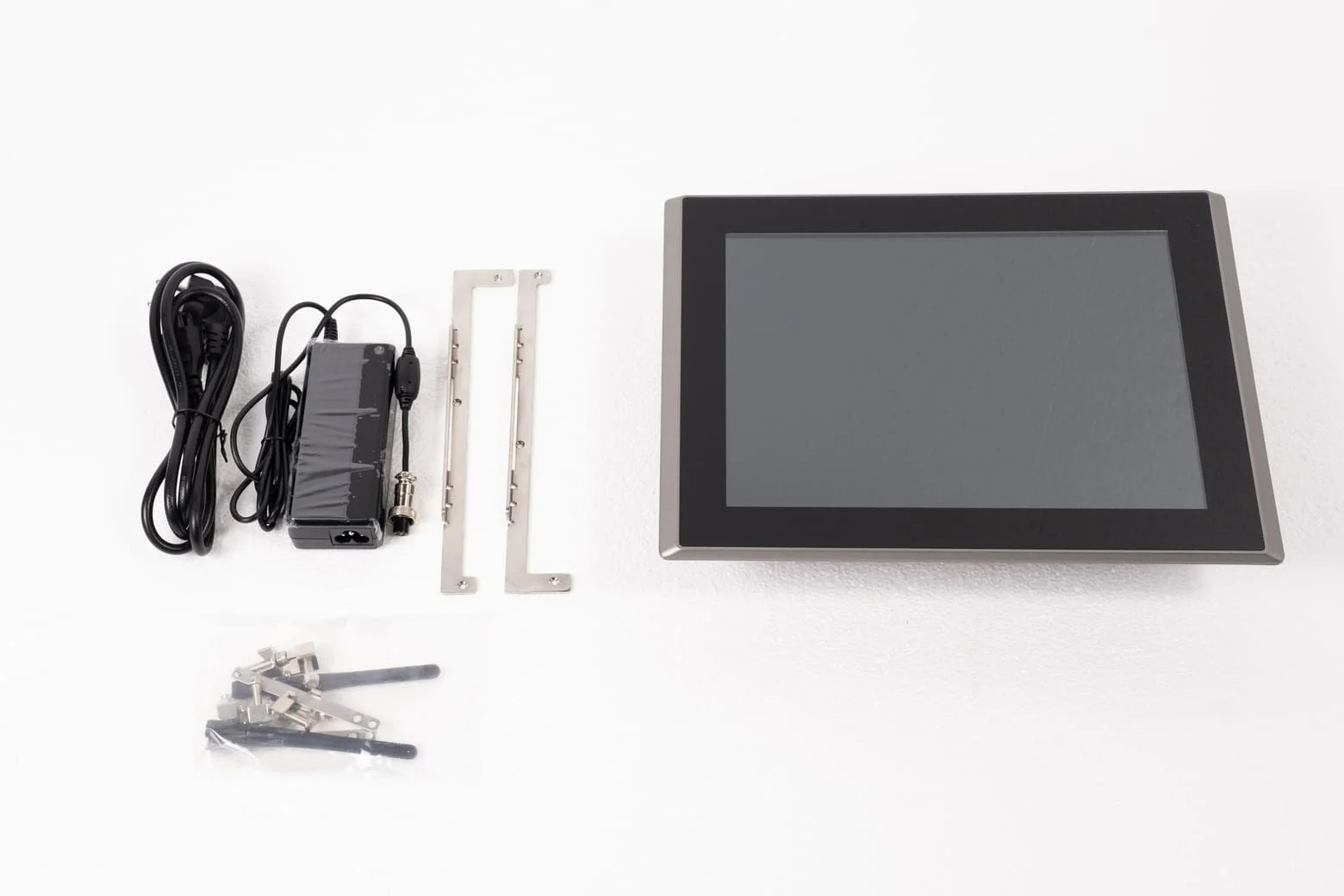

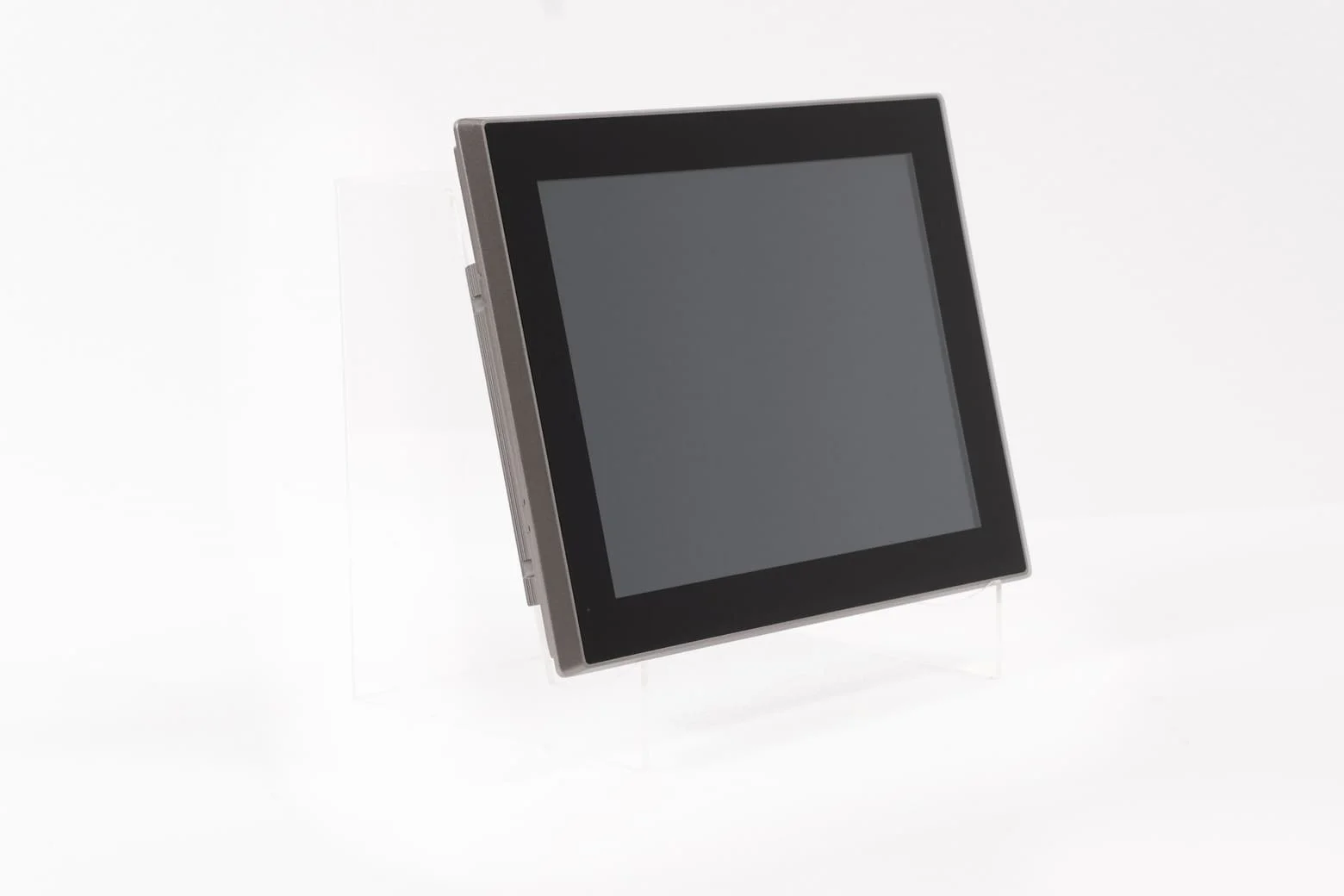

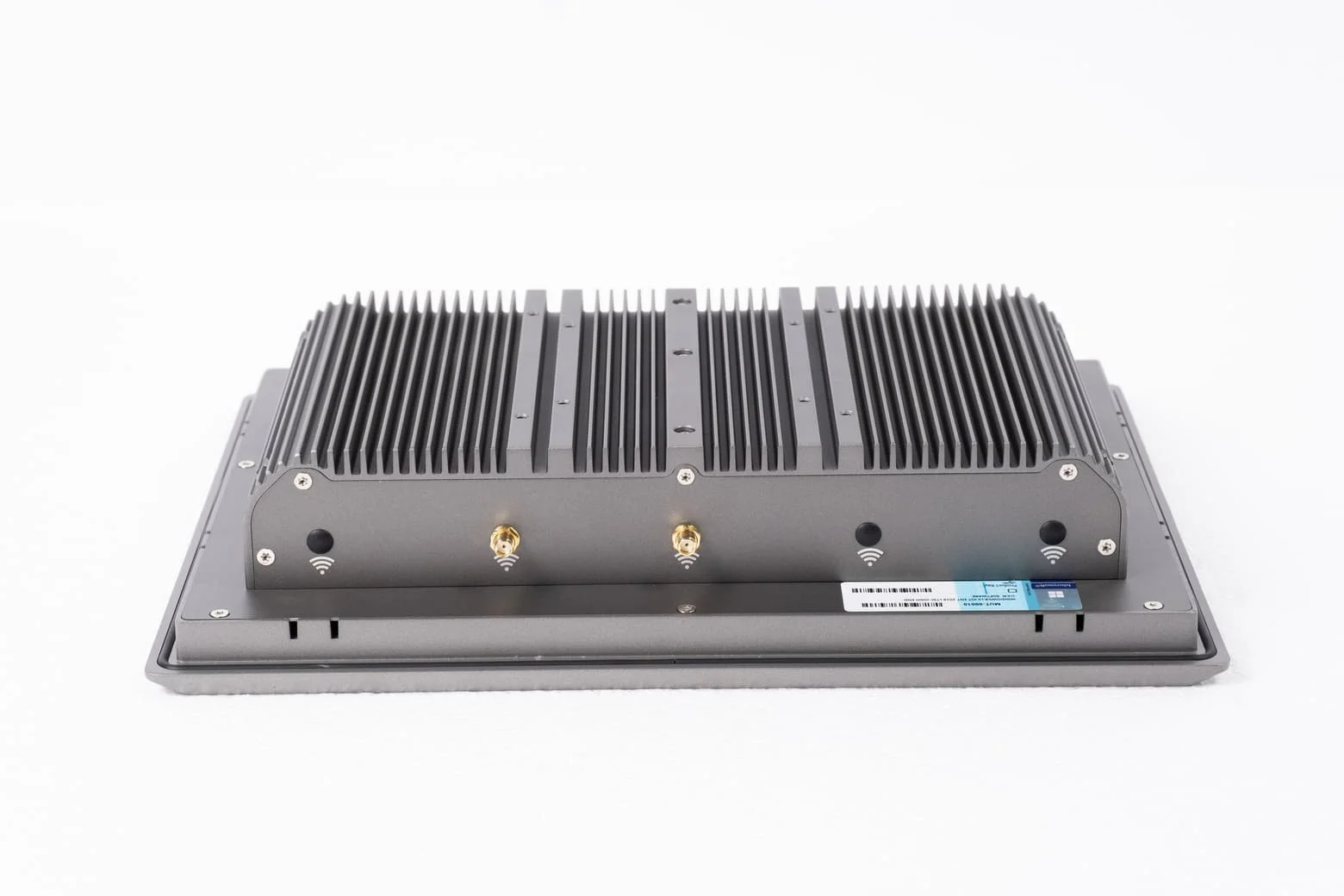

Introducing the BT-100-PCAP-KNU (i7)—a powerful and reliable built-in all-in-one computer with a touch screen, designed for industrial automation. This 10" all-in-one PC is equipped with a 10th Gen Intel Core i7 processor, 8GB of RAM, and a 512GB SSD for fast and efficient data storage. A 1280x800 display with 400 cd/m² brightness provides clear images even in challenging lighting conditions. The device also features multiple interfaces, such as USB 2.0, USB 3.0, RS-232, RS-422/485, RJ45, audio output, and HDMI for connecting to other devices. Additionally, a passive cooling system ensures a long service life, and IP65 dust and moisture protection allows the device to be used in harsh environments. All these features combined make this model an ideal choice for industrial automation applications that require reliable operation in challenging conditions.
Display
Screen Size
10''
Resolution
1280×800
Brightness
400 cd/m²
Touchscreen
Touchscreen Type
Projective Capacitive
Computer Specifications
Processor
Intel Core i7-10th gen
Memory
8GB SSD
Storage
512GB SSD

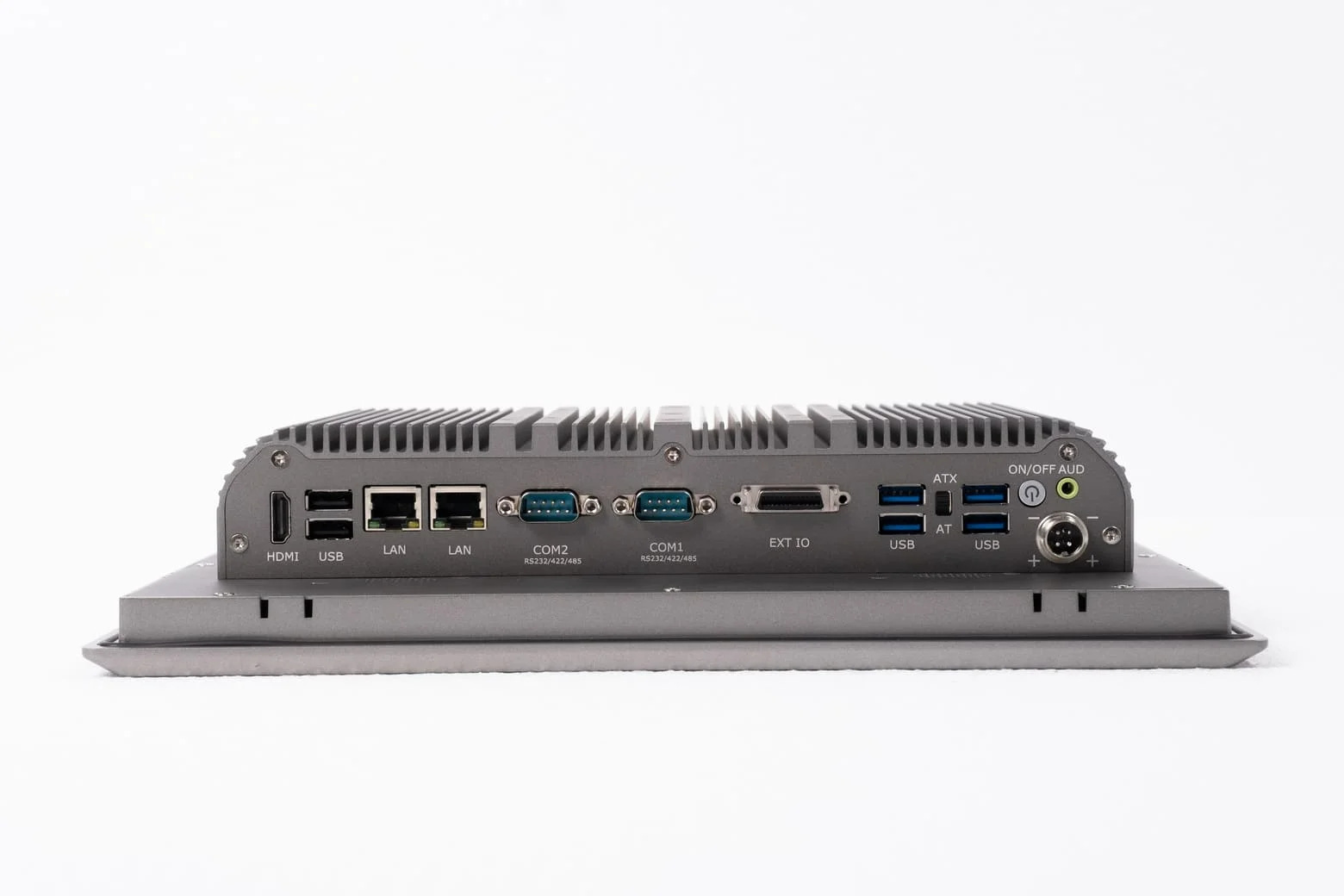

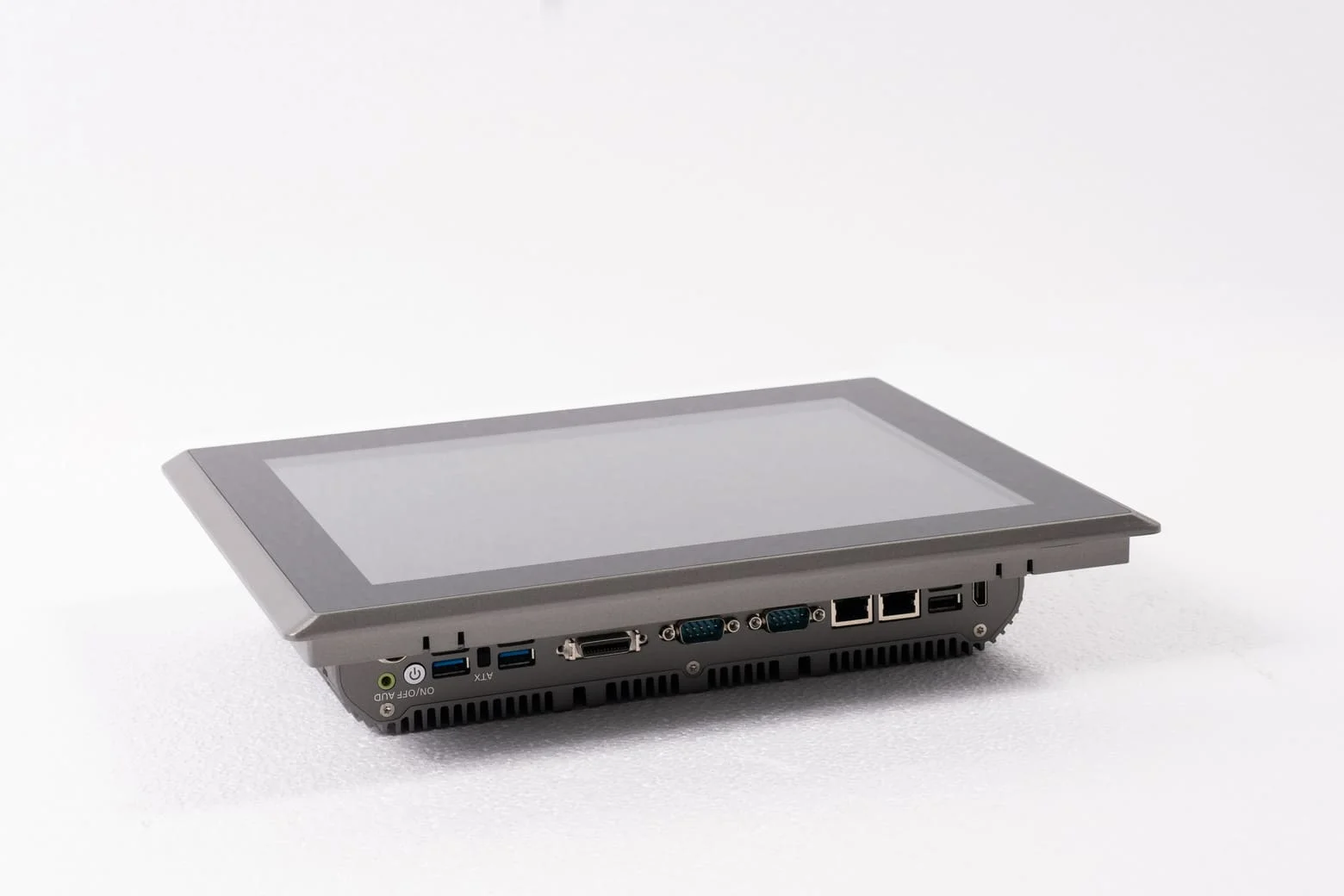

I/O Interfaces
USB 2.0
2
USB 3.0
4
Ethernet
2
RS232
2
RS422/485
2*RS232/422/485
HDMI
1
Other
1 x Audio Line-out, 1x Power On/Off Switch (AT/ATX), GPIO
Additional slots
Additional slots
M.2 3042/3052 3G/4G/5G, SIM card slot on the motherboard M.2 2230 Wi-Fi, Bluetooth
