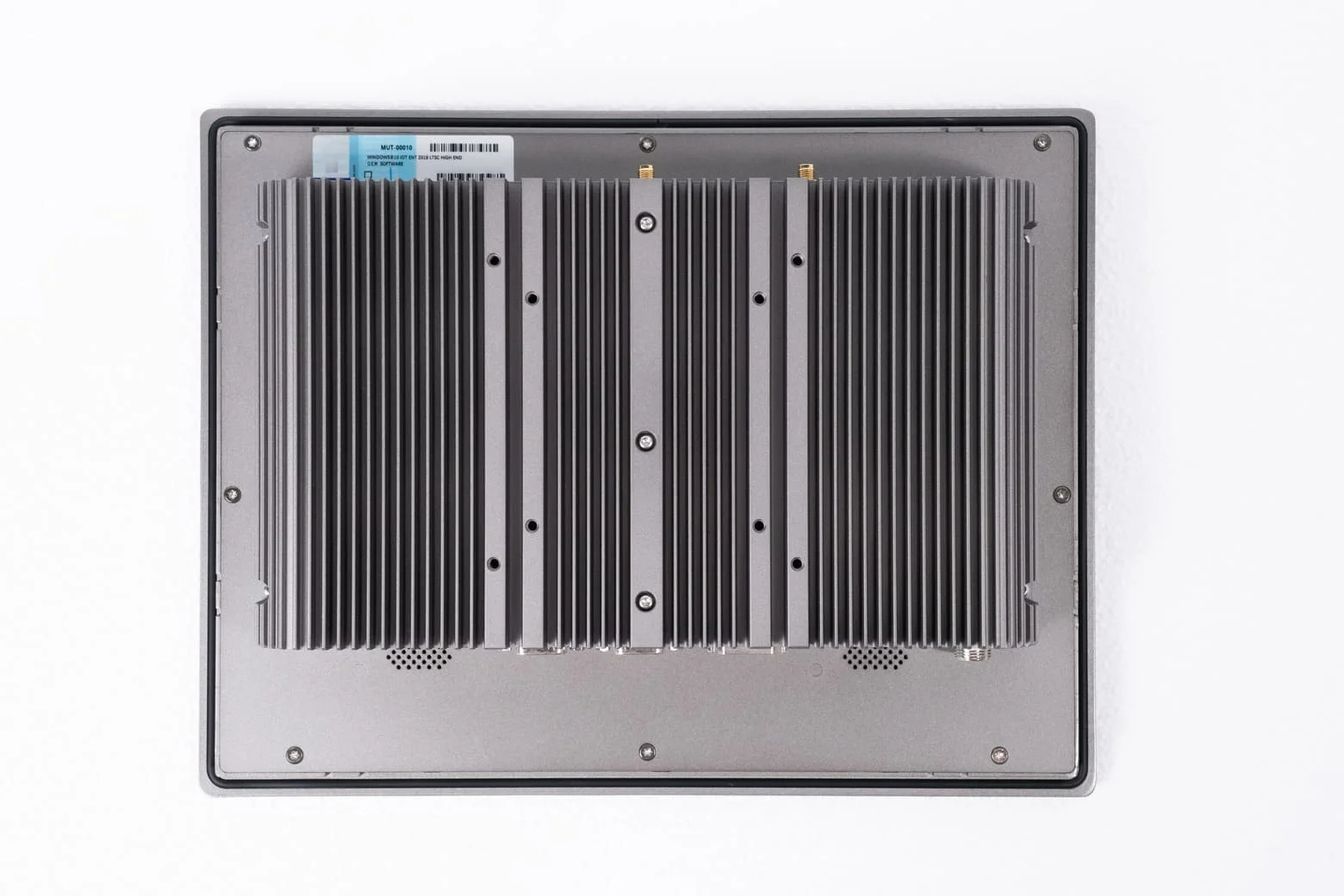

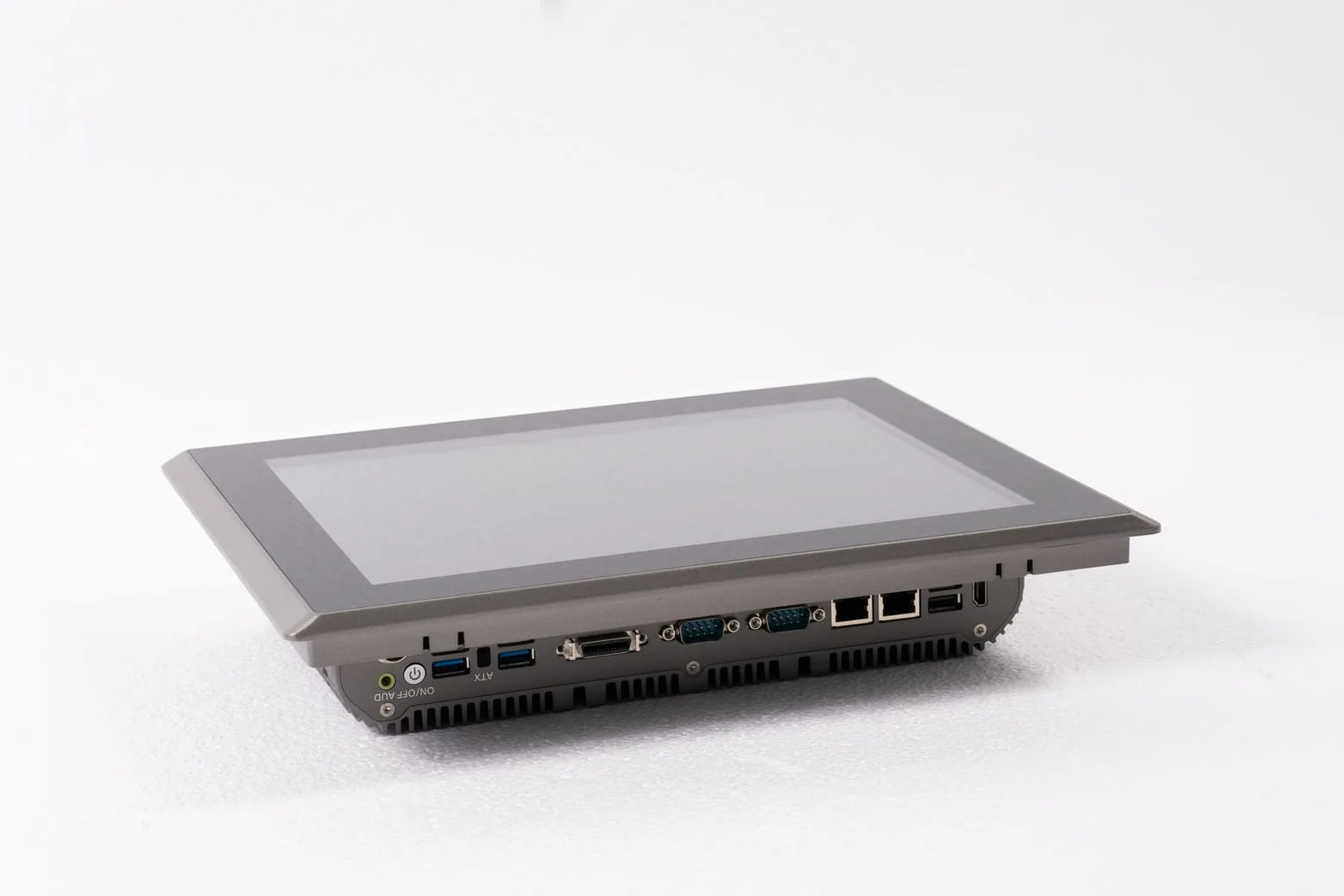

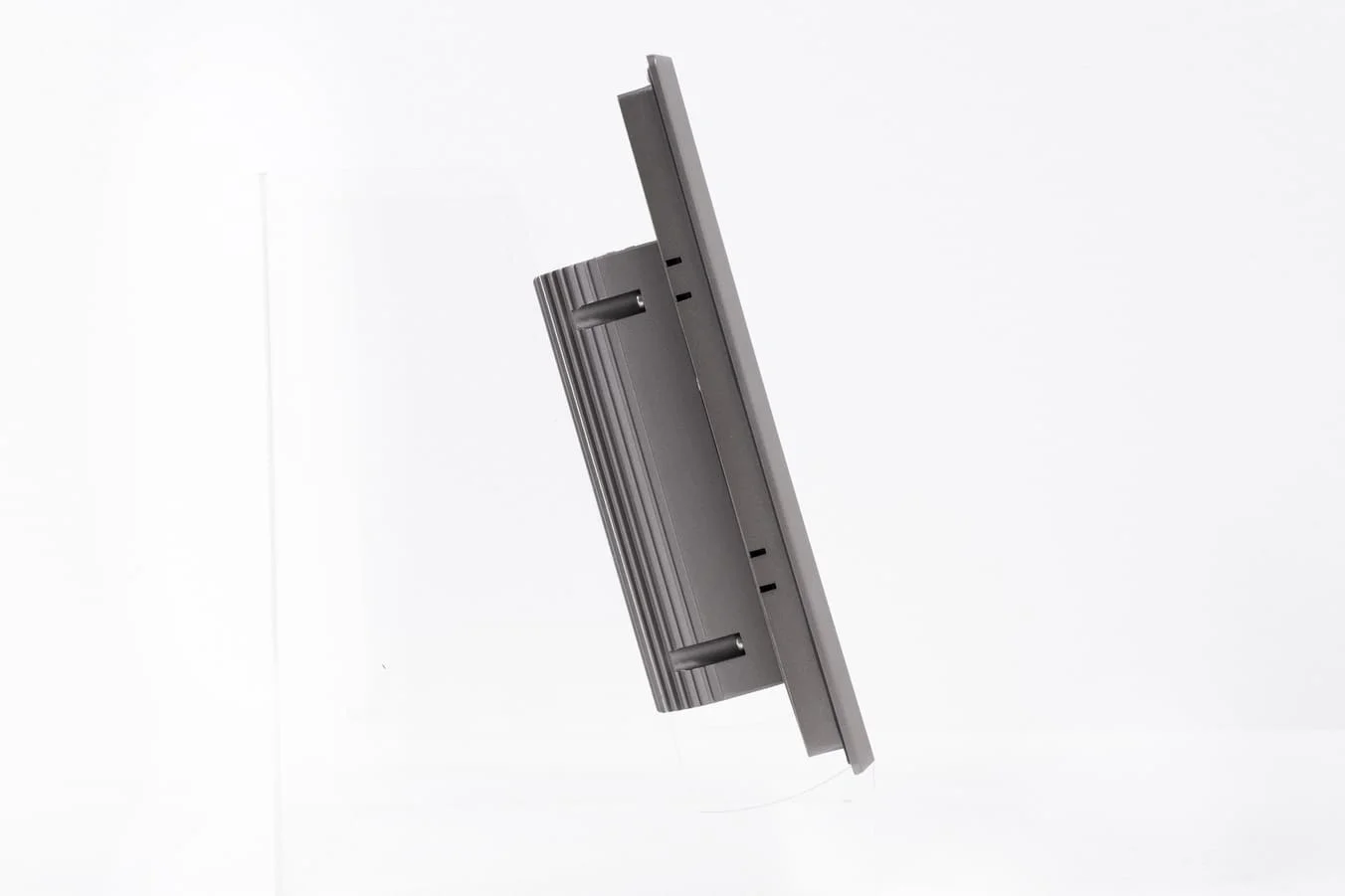

Introducing the BT-120-PCAP-KNU (i7) — a powerful and reliable solution for industrial automation. This 12-inch all-in-one touchscreen PC is packed with features to ensure smooth operation. The 1024x768 display offers 400 cd/m² brightness and is IP65-rated for dust and moisture resistance. The 10th Gen Intel Core i7 processor, 8GB of RAM, and 512GB SSD provide ample power for all your industrial automation needs. RS-232, RS-422/485, USB 2.0, USB 3.0, RJ45, line-out audio, and HDMI interfaces provide a variety of connectivity options for integration with other systems. Additionally, the enclosure design ensures a long service life and efficient passive cooling. With its robust design and reliable operation, the BT-120-PCAP-KNU (i7) is the ideal choice for any industrial automation application.

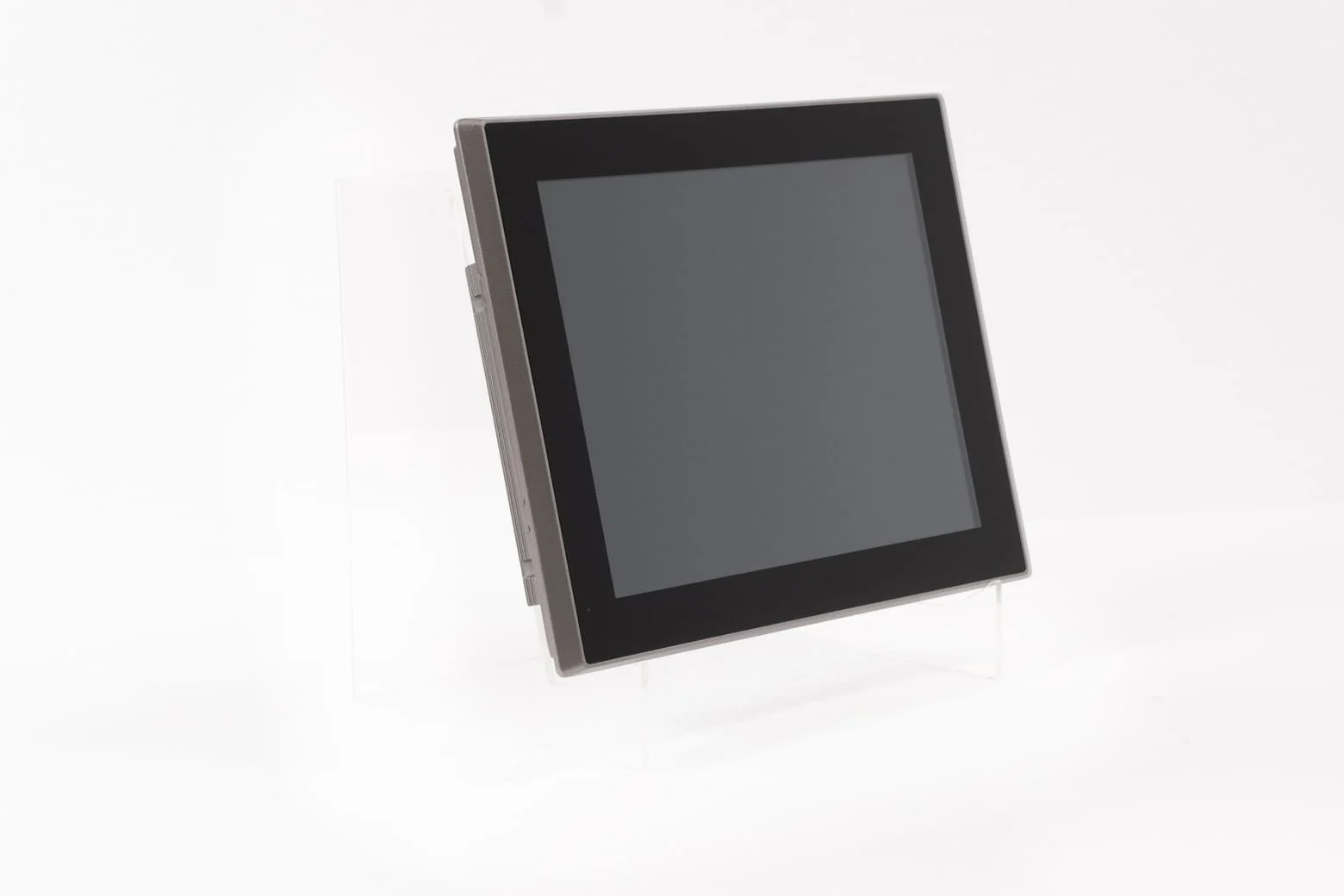

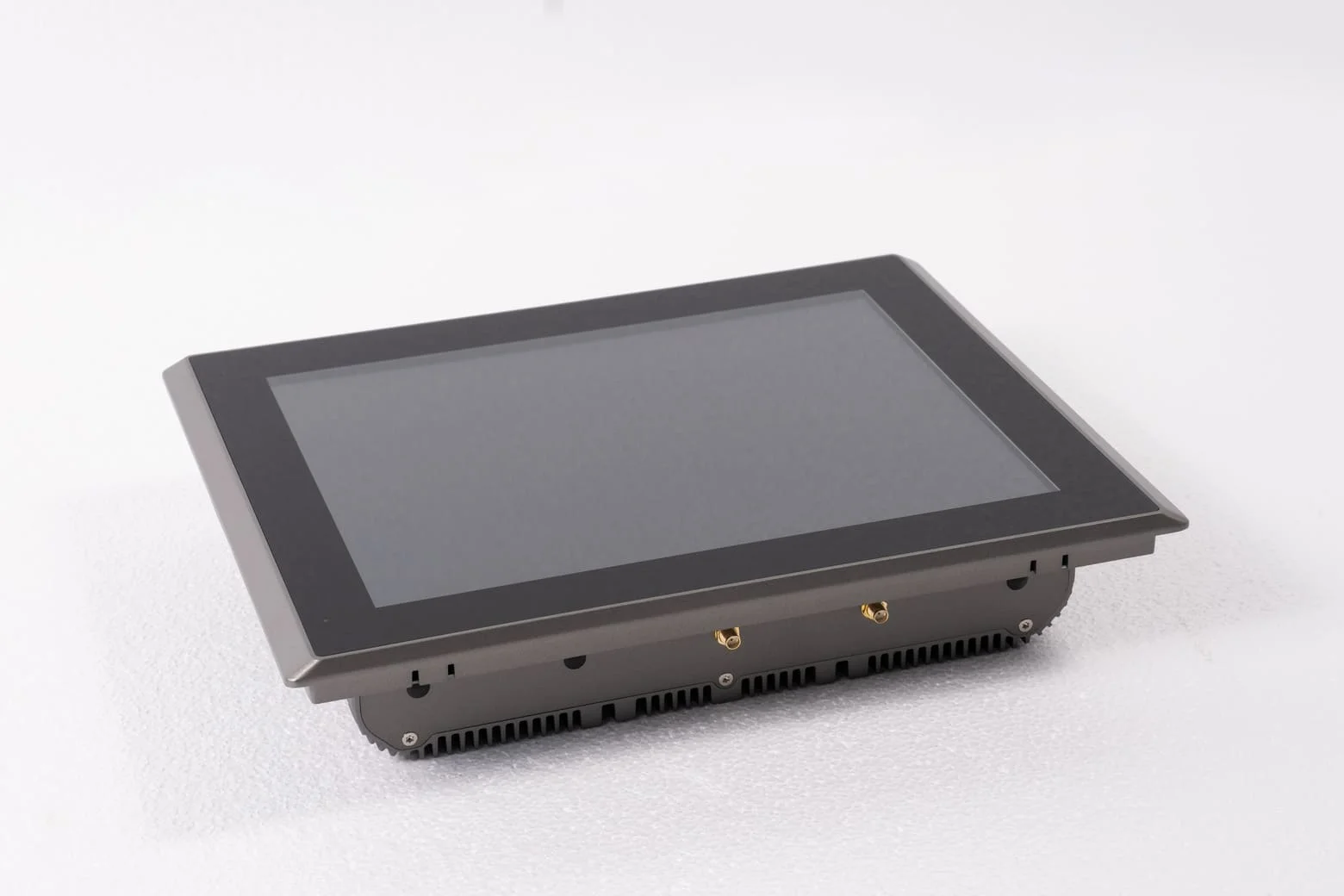

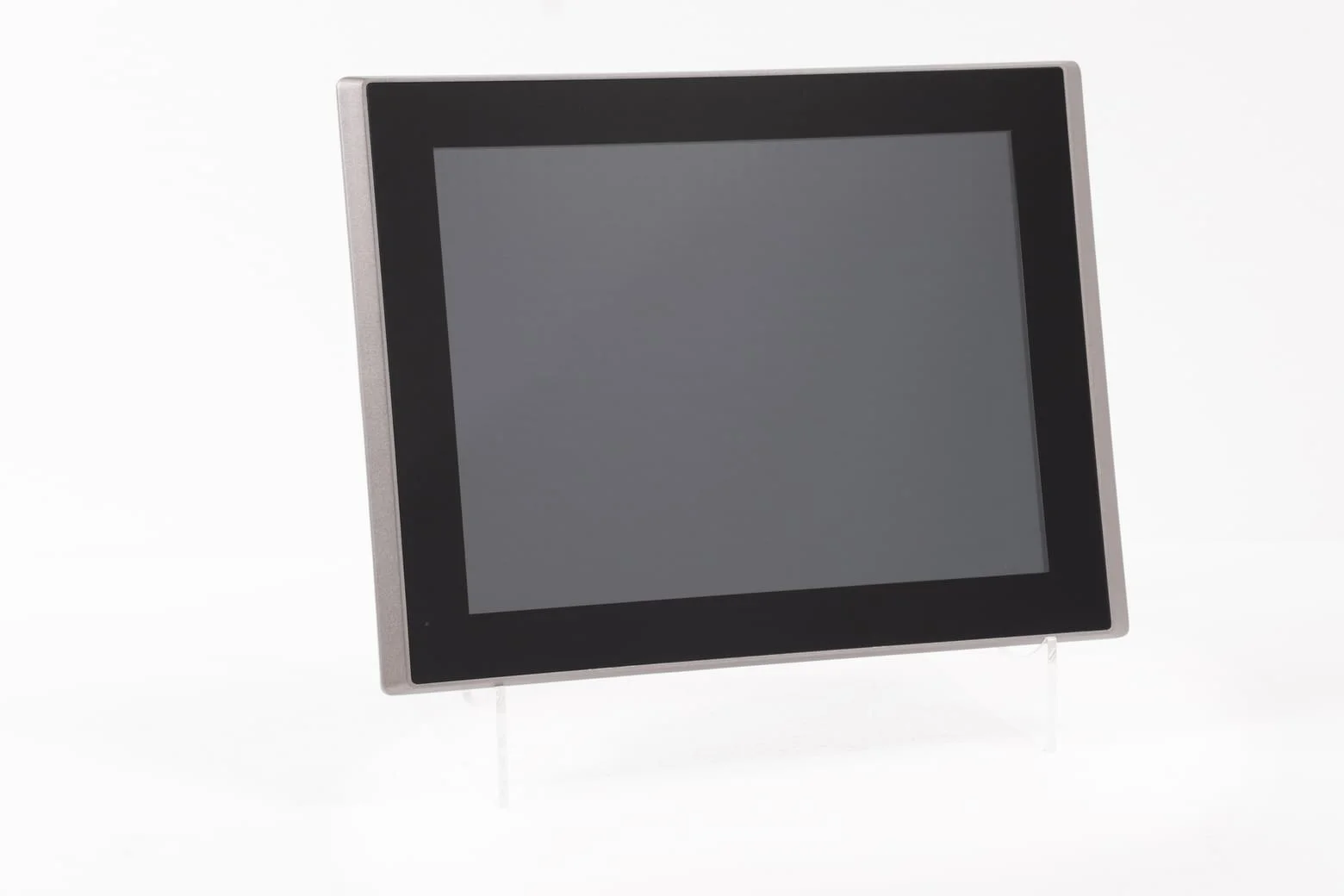

Display
Screen Size
12''
Resolution
1024×768
Brightness
400 cd/m²
Touchscreen
Touchscreen Type
Projective Capacitive
Computer Specifications
Processor
Intel Core i7-10th gen
Memory
8GB SSD
Storage
512GB SSD

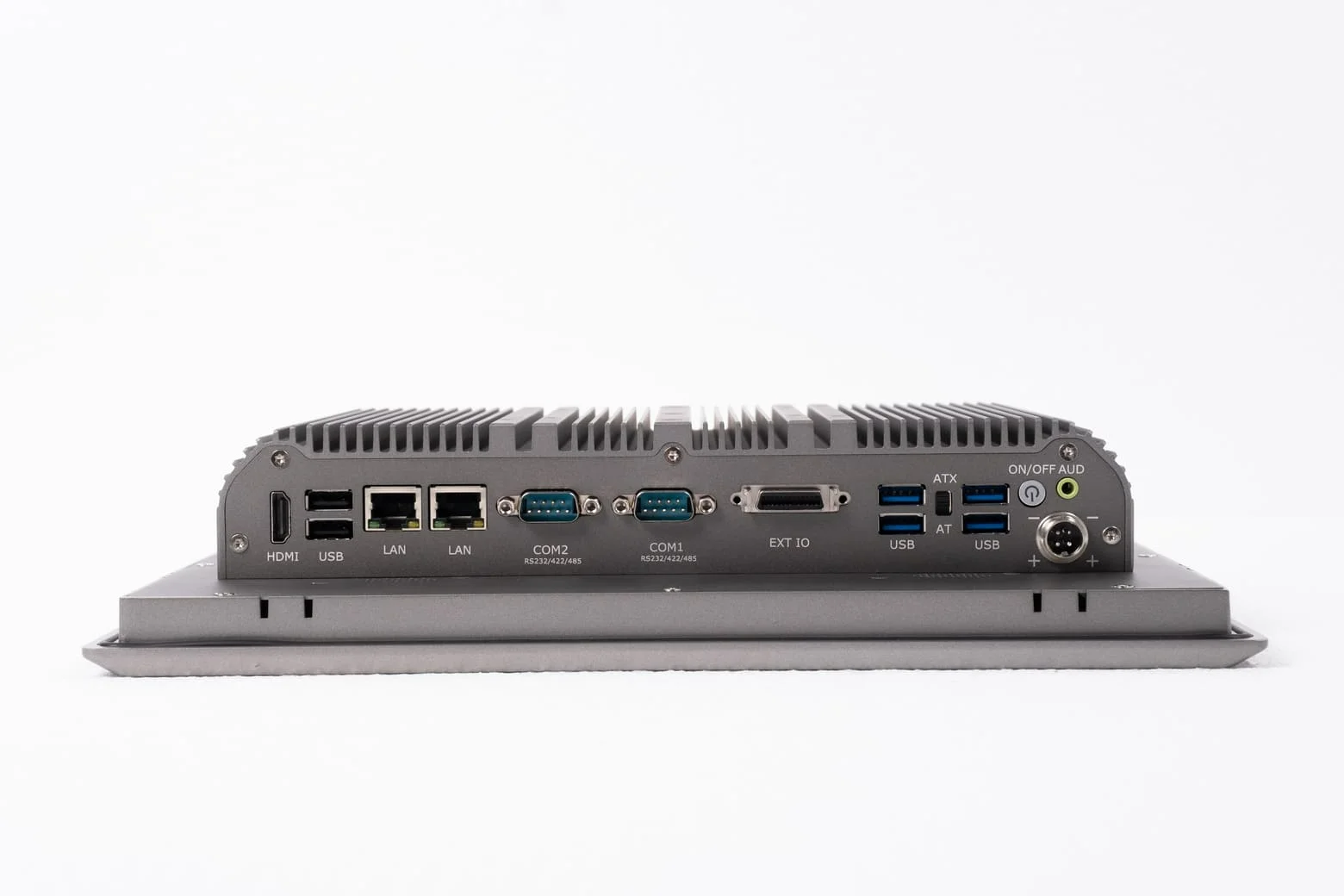

I/O Interfaces
USB 2.0
2
USB 3.0
4
Ethernet
2
RS232
2
RS422/485
2*RS232/422/485
HDMI
1
Other
1 x Audio Line-out, 1x Power On/Off Switch (AT/ATX), GPIO
Additional slots
Additional slots

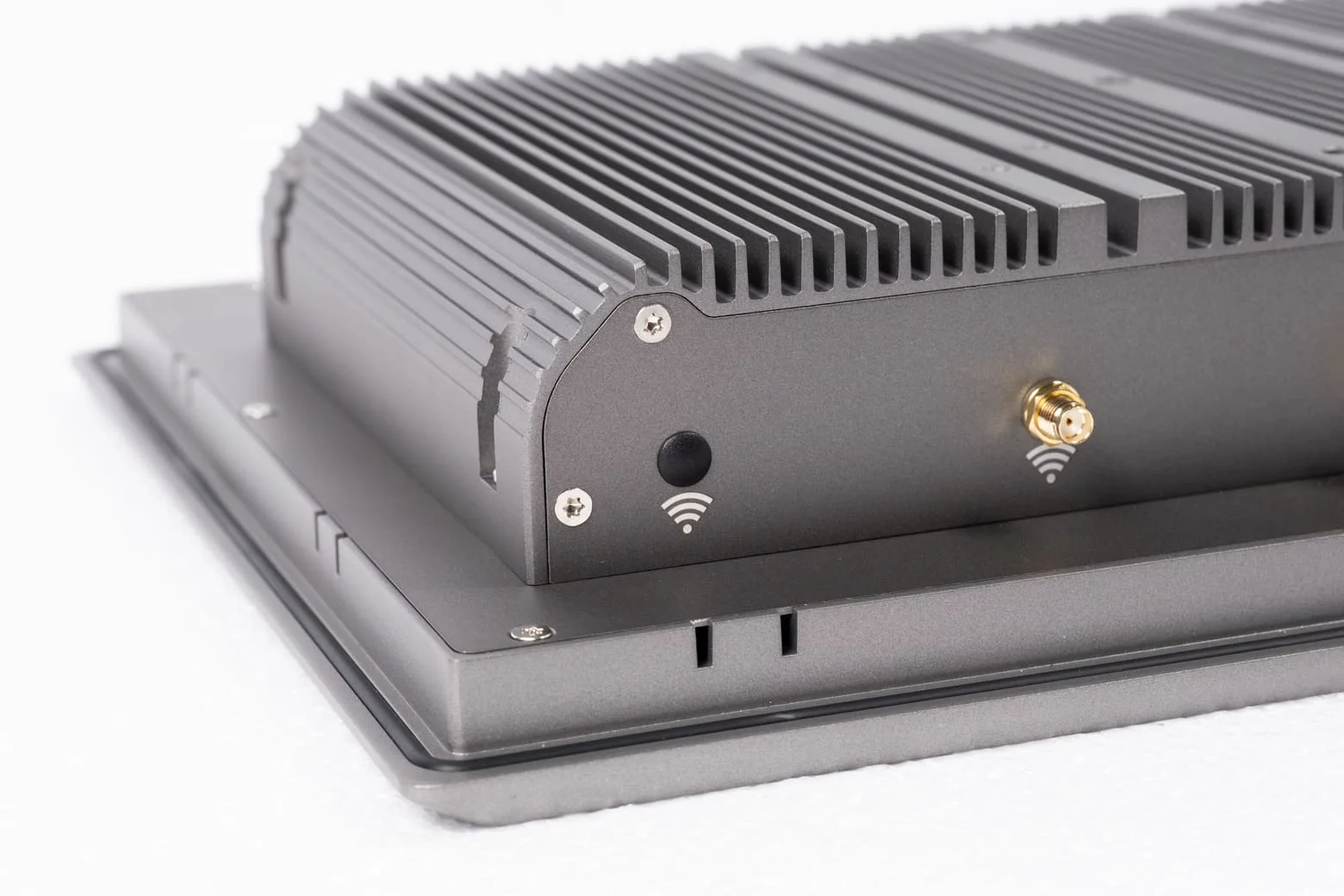

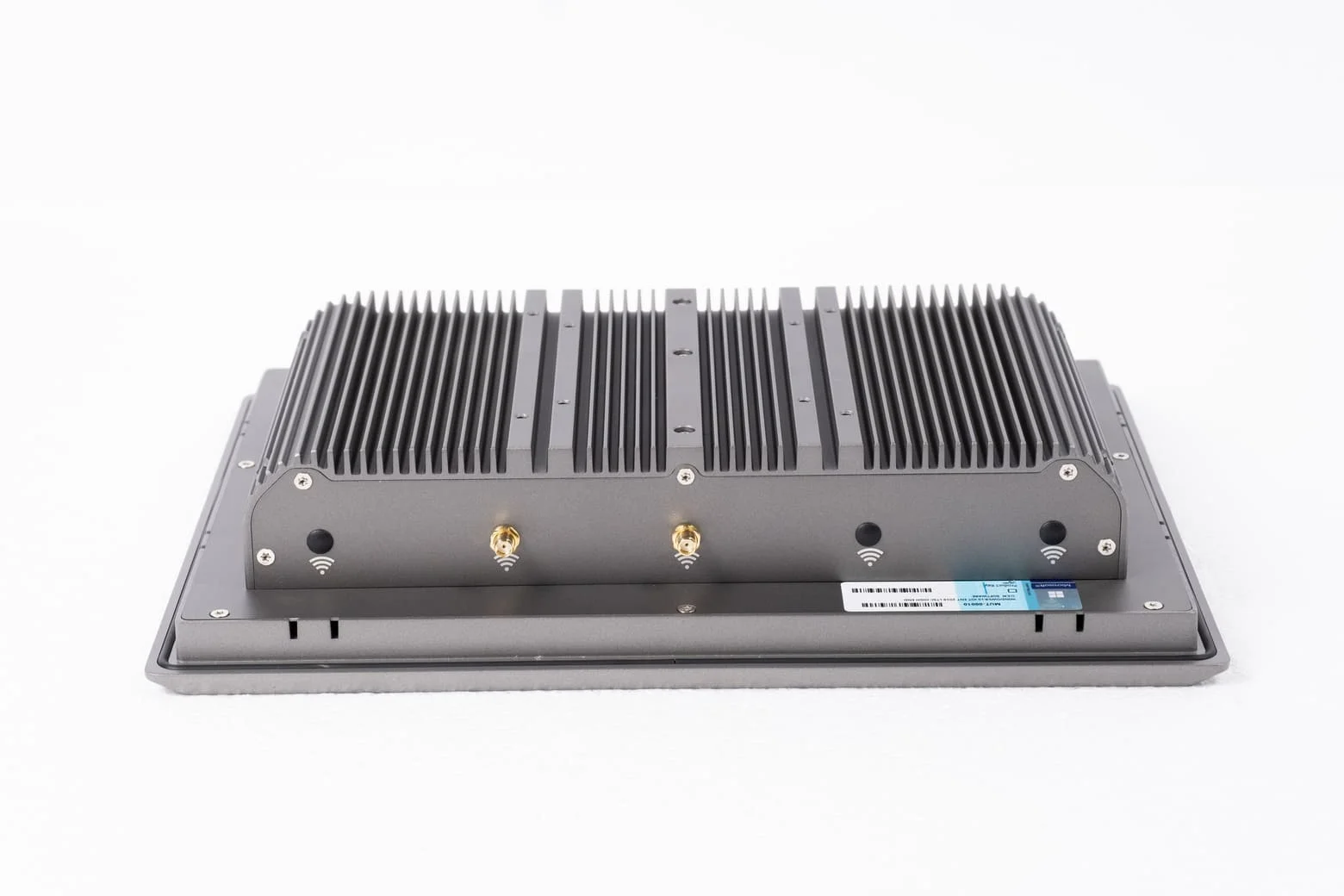

M.2 3042/3052 3G/4G/5G, SIM card slot on the motherboard M.2 2230 Wi-Fi, Bluetooth
