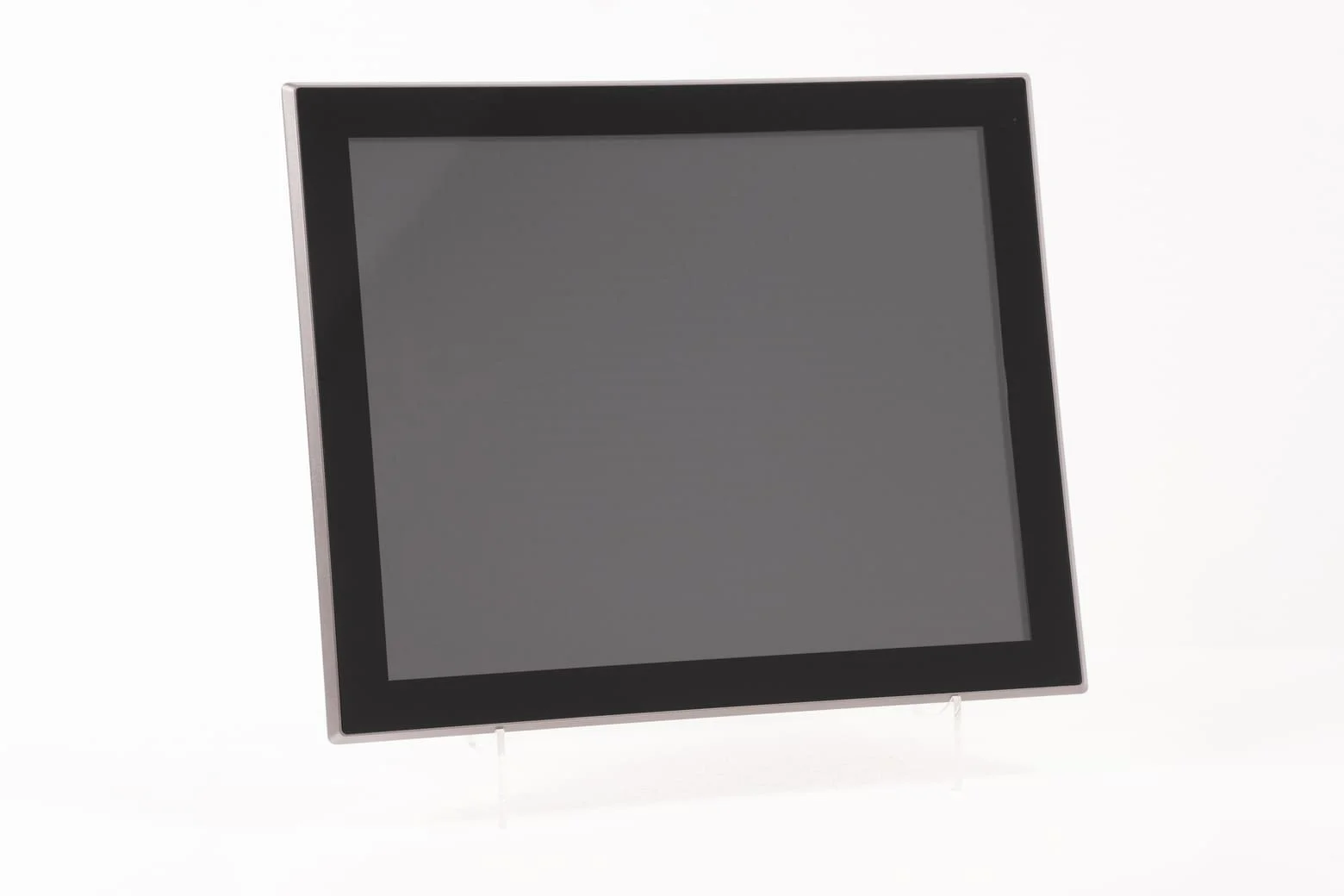

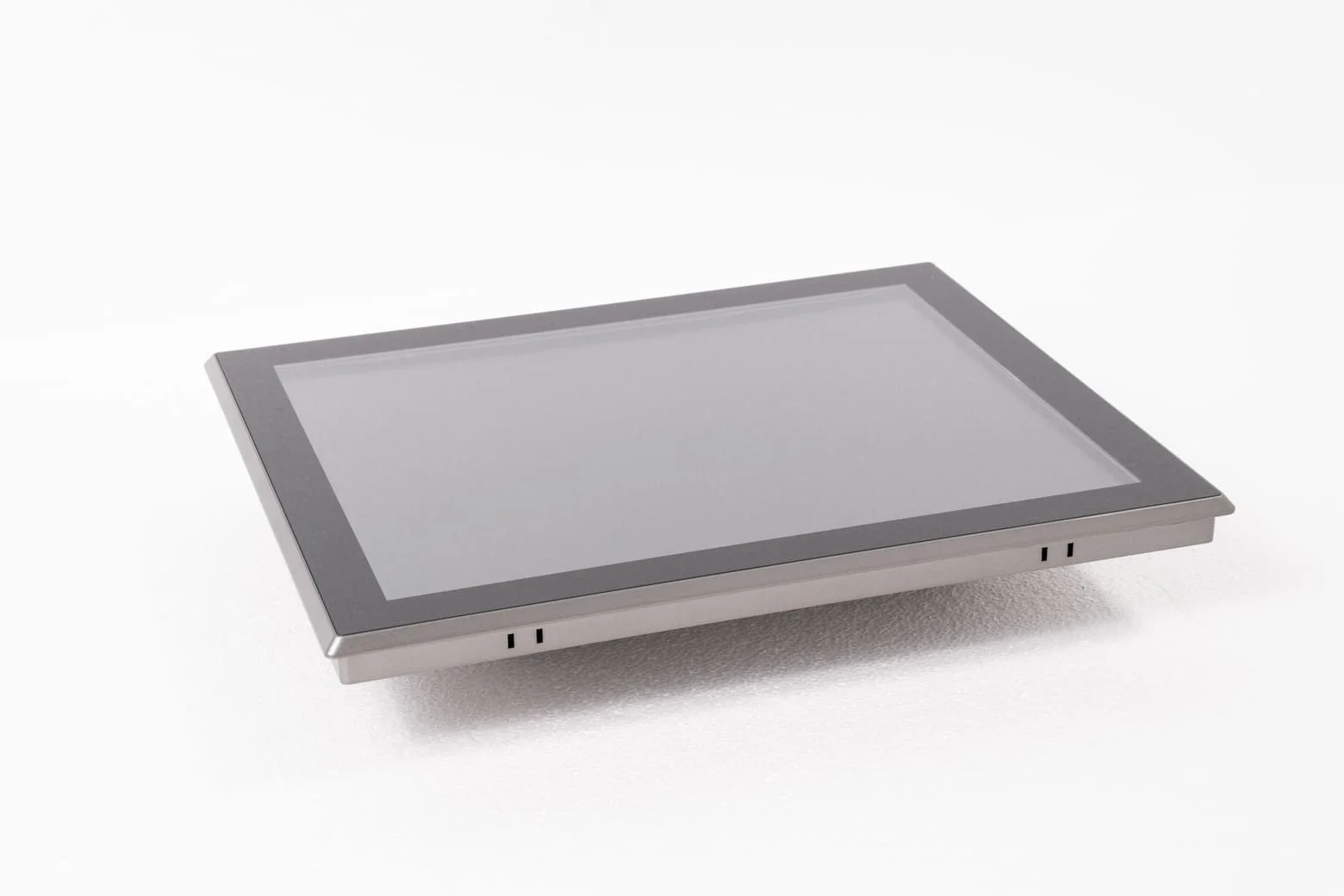

Introducing the BT-156-PCAP-KNU (i7) 15.6" built-in touchscreen all-in-one PC, a powerful and reliable solution for industrial automation. This built-in all-in-one PC features a 15.6" display with a 1920x1080 resolution and 250 cd/m² brightness, making it ideal for any industrial application. It also features a 10th Gen Intel Core i7 processor, 8 GB RAM, and a 512 GB SSD for fast and reliable operation.

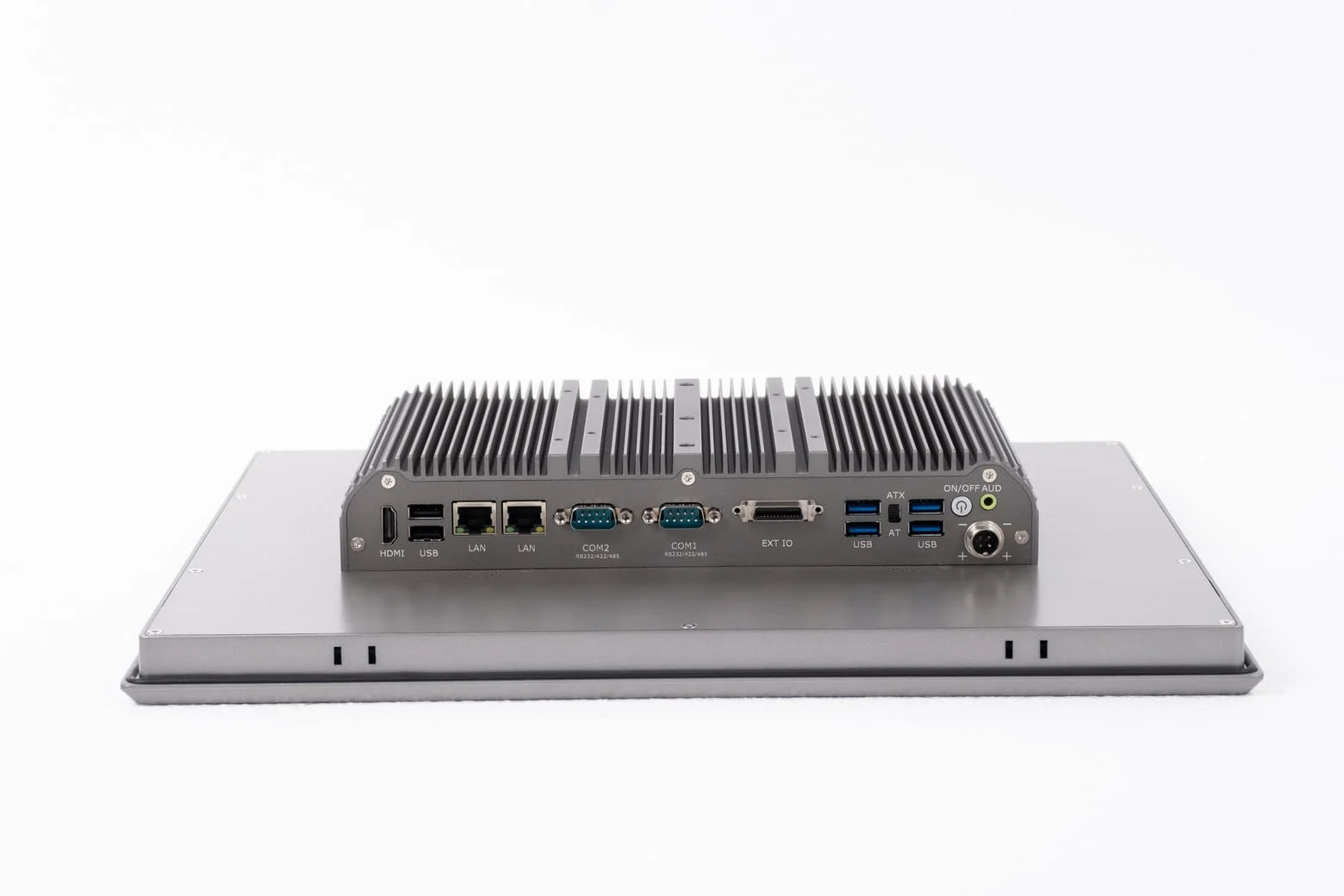

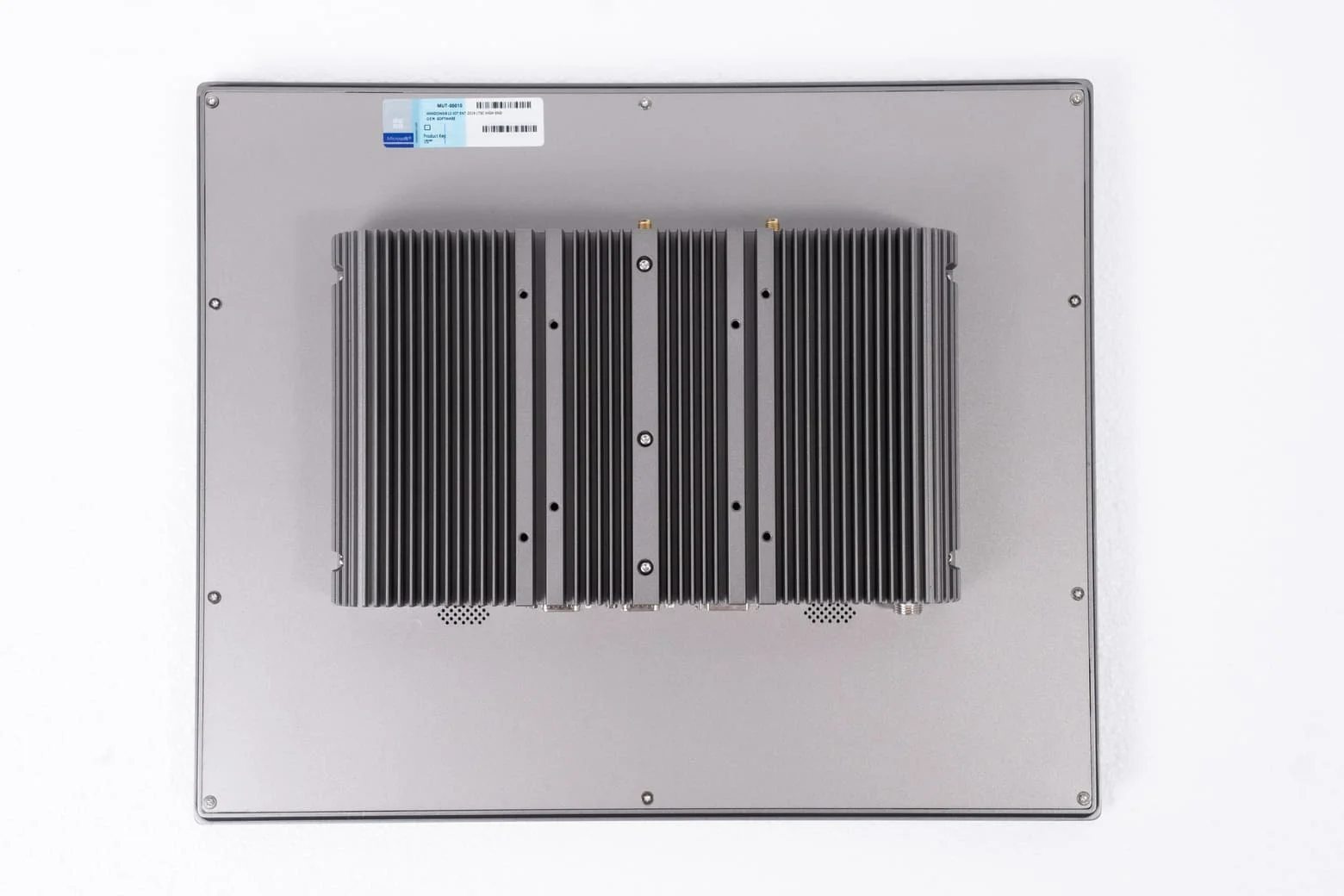

The BT-156-PCAP-KNU (i7) model also features multiple interfaces, such as USB 2.0, USB 3.0, RS-232, RS-422/485, RJ45, audio output, and HDMI, for easy connection to other devices and systems. It also features a passive cooling system, ensuring a long service life and protection from dust and moisture. BT-156-PCAP-KNU (i7) is the ideal solution for any industrial automation task thanks to its powerful hardware components and reliable operation even in the most challenging conditions.
Display
Screen Size
15.6''
Resolution
1920х1080
Brightness
250 cd/m²
Touchscreen
Touchscreen Type
Projective Capacitive
Computer Specifications
Processor
Intel Core i7-10th gen
Memory
8GB SSD
Storage
512GB SSD
I/O Interfaces
USB 2.0
2
USB 3.0
4
Ethernet
2
RS232
2
RS422/485
2*RS232/422/485
HDMI
1
Other
1 x Audio Line-out, 1x Power On/Off Switch (AT/ATX), GPIO
Additional slots
Additional slots
M.2 3042/3052 3G/4G/5G, SIM card slot on the motherboard M.2 2230 Wi-Fi, Bluetooth
