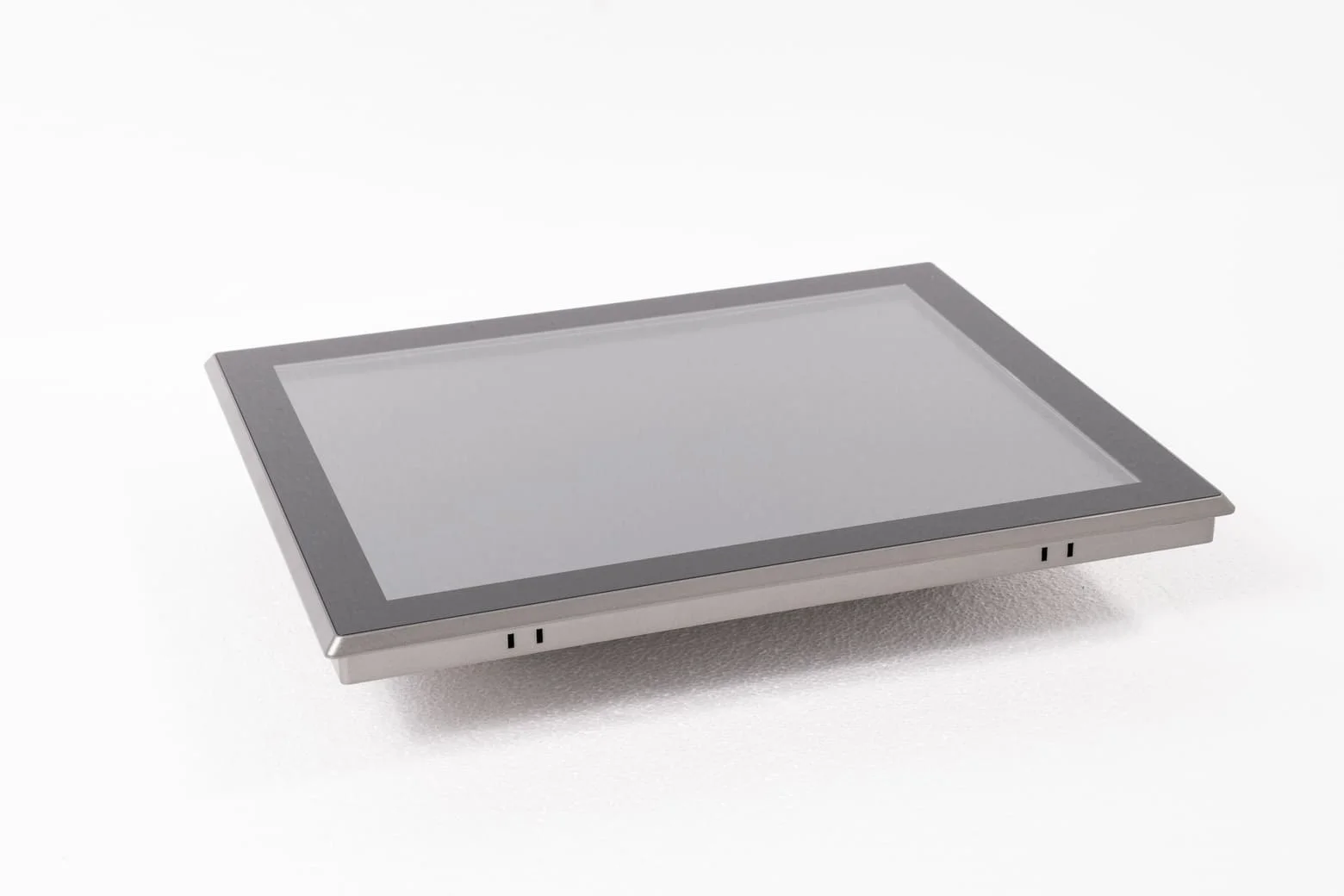

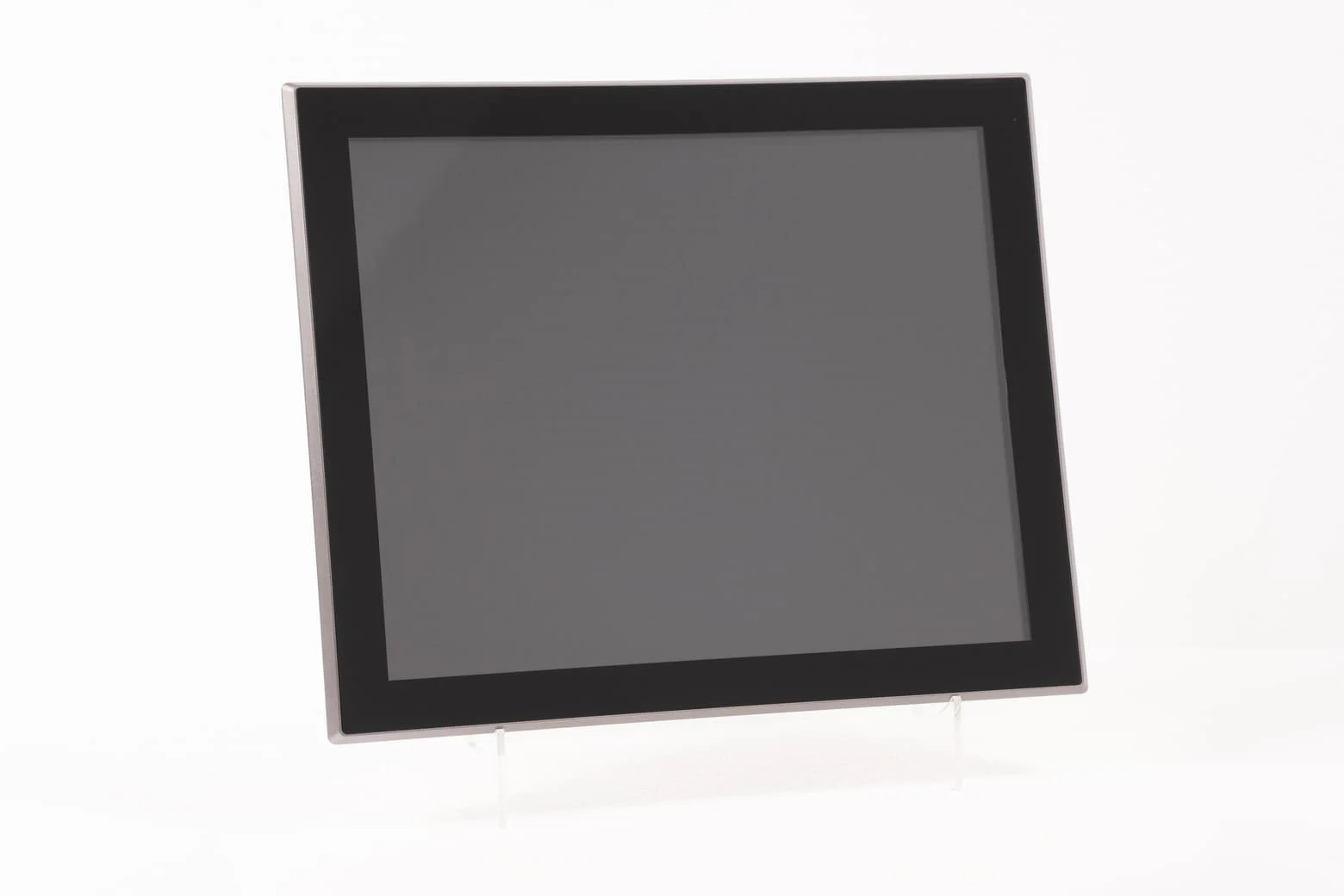

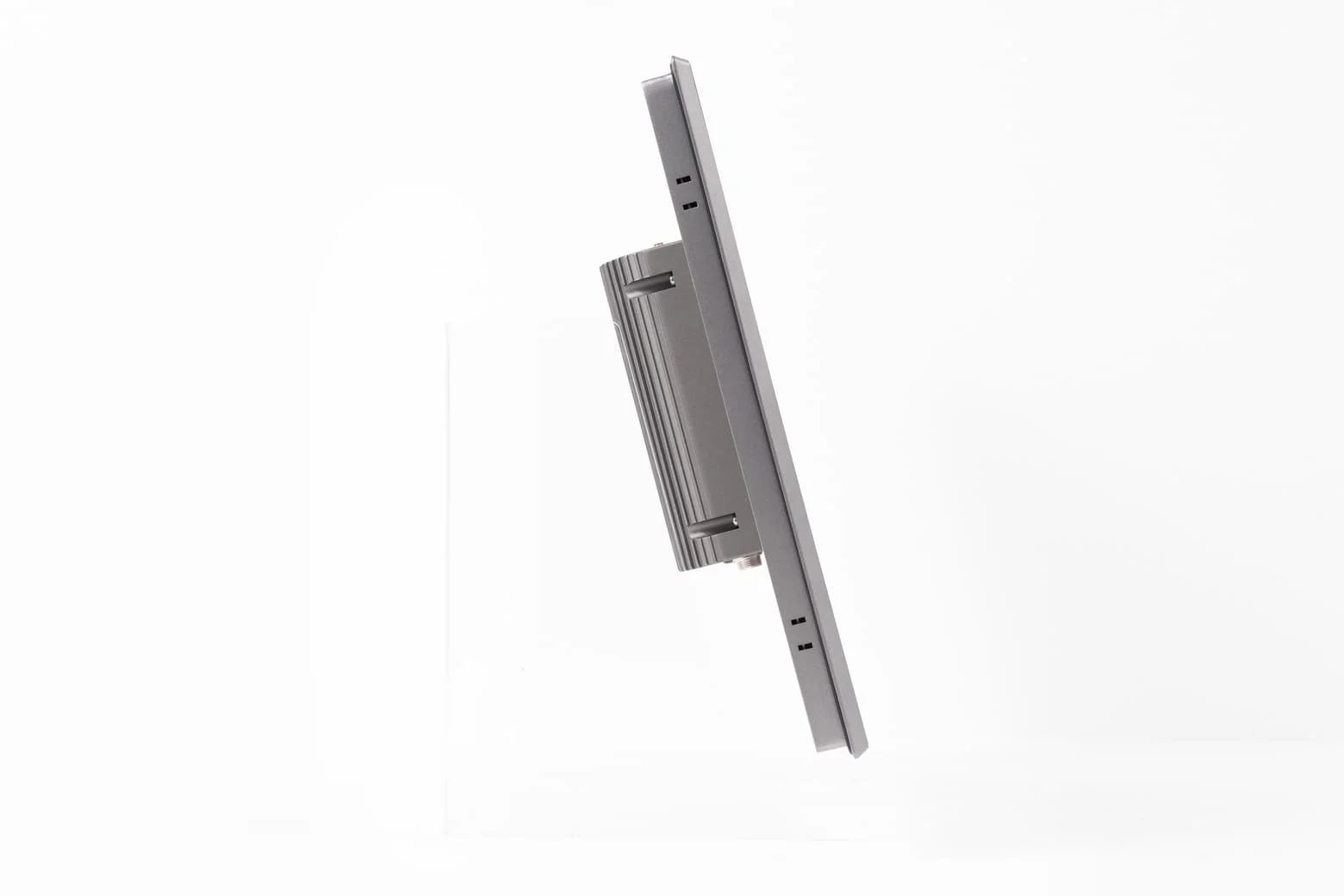

BT-170-PCAP-KNU (i7) is a powerful and reliable solution for industrial automation, combining a built-in touch display and a built-in all-in-one unit. This all-in-one device features a 17-inch display with a 1280x1024 resolution, 250 cd/m² brightness, and a 10th Gen Intel Core i7 processor. It also features 8 GB of RAM, 512 GB of hard drive space, and a range of interfaces, including USB 2.0, USB 3.0, RS-232, RS-422/485, RJ45, audio line-out, and HDMI.

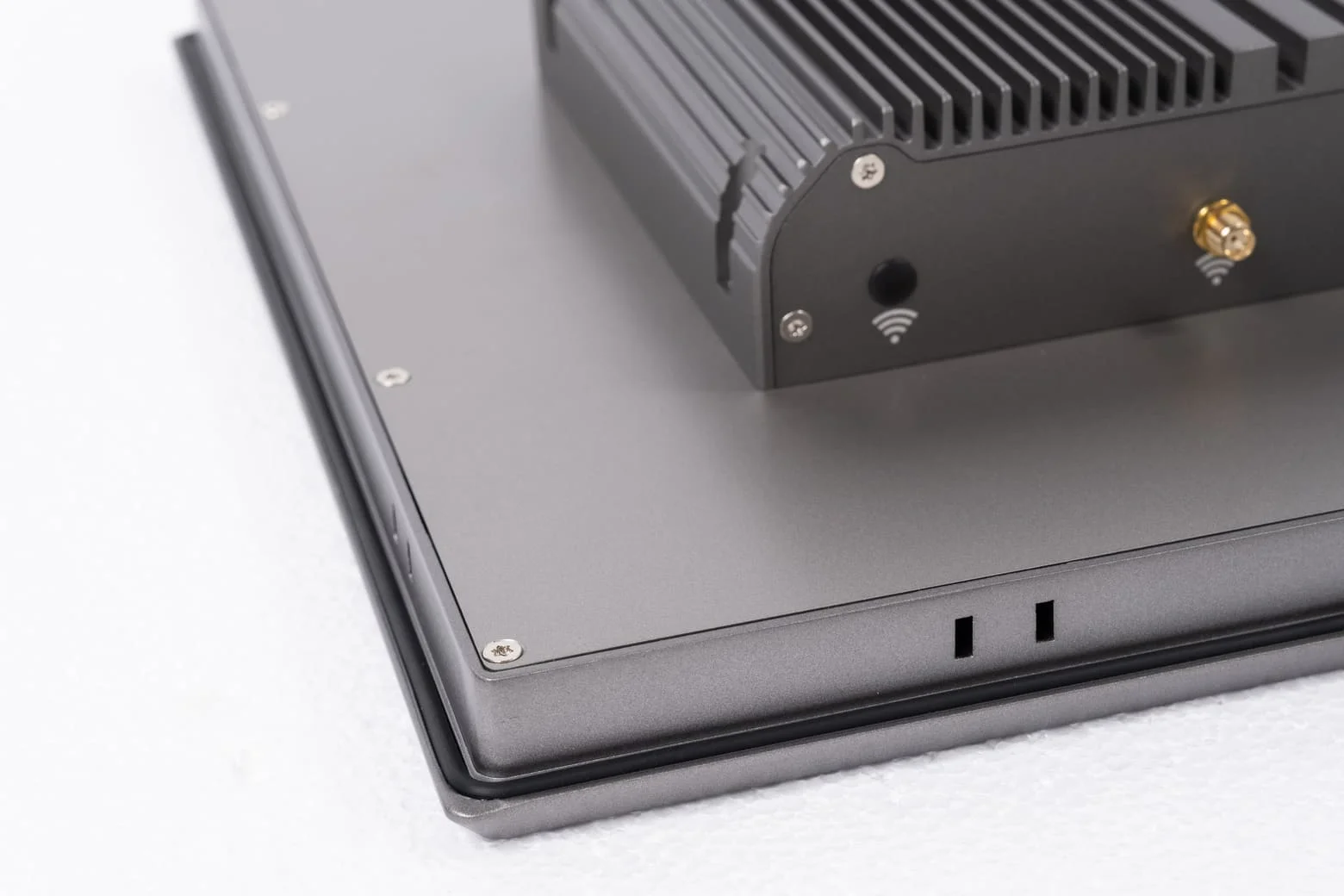

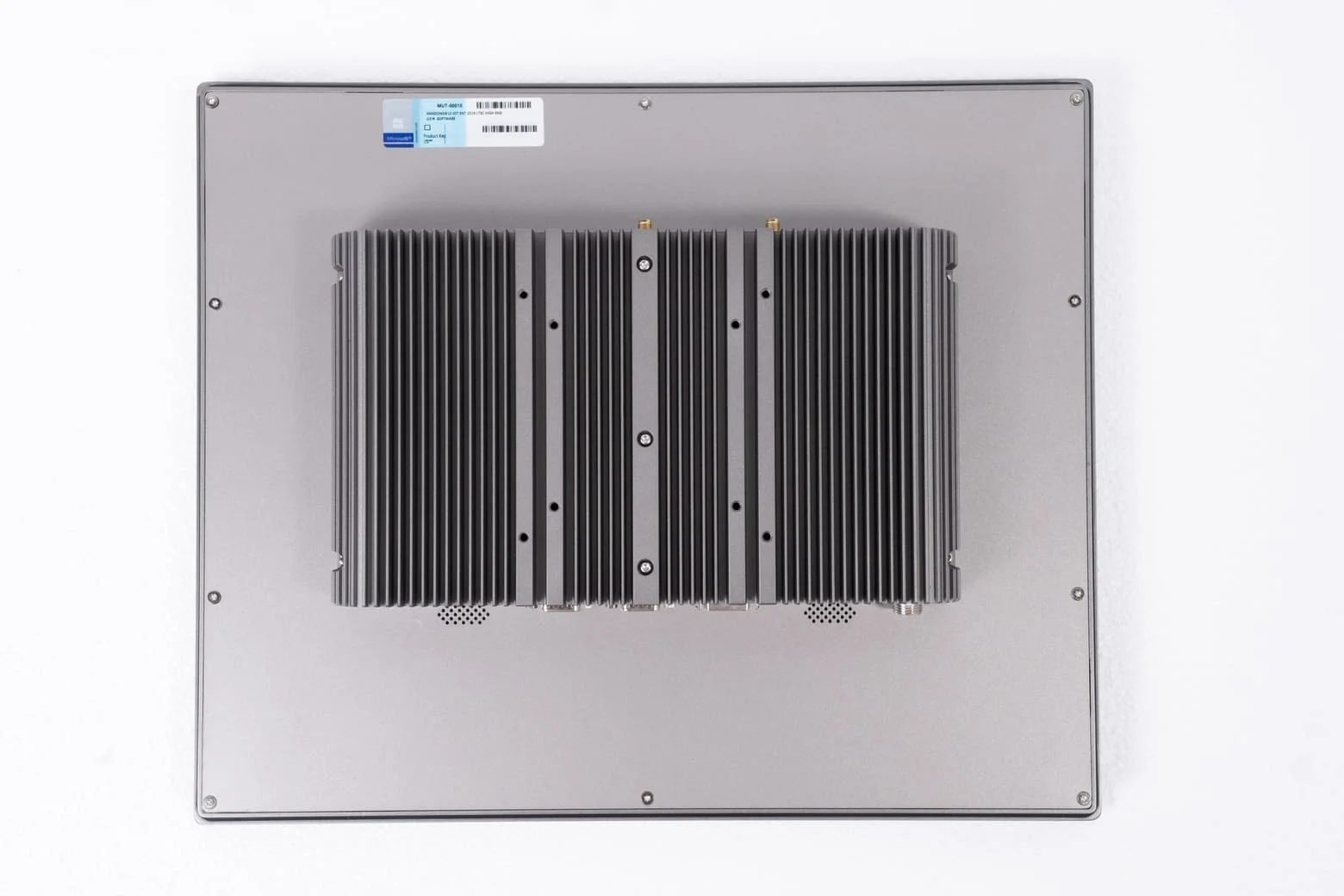

The BT-170-PCAP-KNU (i7)model is designed for industrial use and boasts a number of features that allow it to withstand harsh operating conditions. It features passive cooling for a long service life and is protected from dust and moisture with an IP65 rating.
This all-in-one computer offers the ideal combination of performance and reliability for any industrial automation application. With an integrated touchscreen display, a powerful processor, ample memory and storage, and a robust design, it will become the perfect choice. the perfect solution to meet your needs.
Display
Screen Size
17''
Resolution
1280х1024
Brightness
250 cd/m²
Touchscreen
Touchscreen Type
Projective Capacitive
Computer Specifications
Processor
Intel Core i7-10th gen
Memory
8GB SSD
Storage
512GB SSD

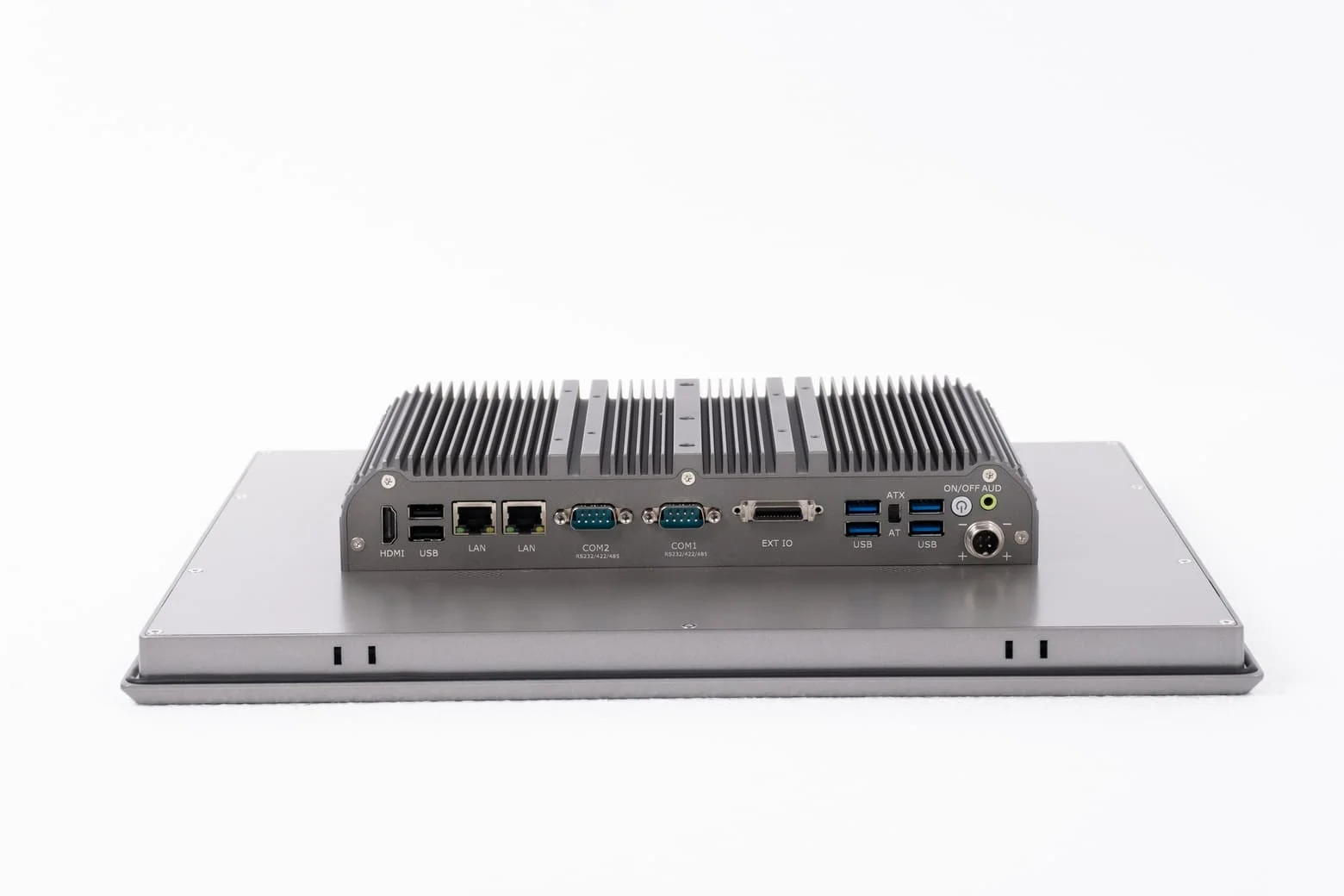

I/O Interfaces
USB 2.0
2
USB 3.0
4
Ethernet
2
RS232
2
RS422/485
2*RS232/422/485
HDMI
1
Other
1 x Audio Line-out, 1x Power On/Off Switch (AT/ATX), GPIO
Additional slots
Additional slots
M.2 3042/3052 3G/4G/5G, SIM card slot on the motherboard M.2 2230 Wi-Fi, Bluetooth
