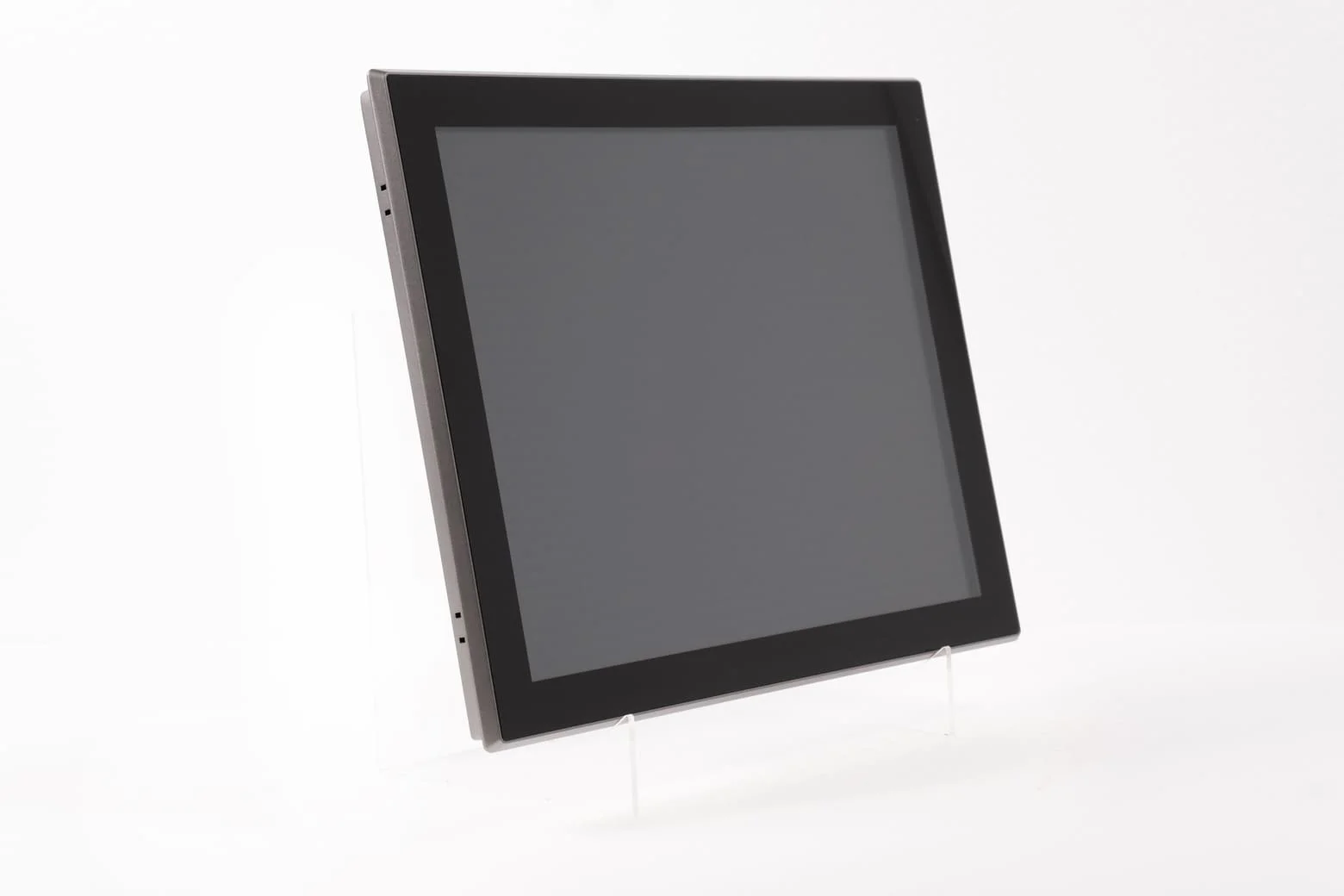

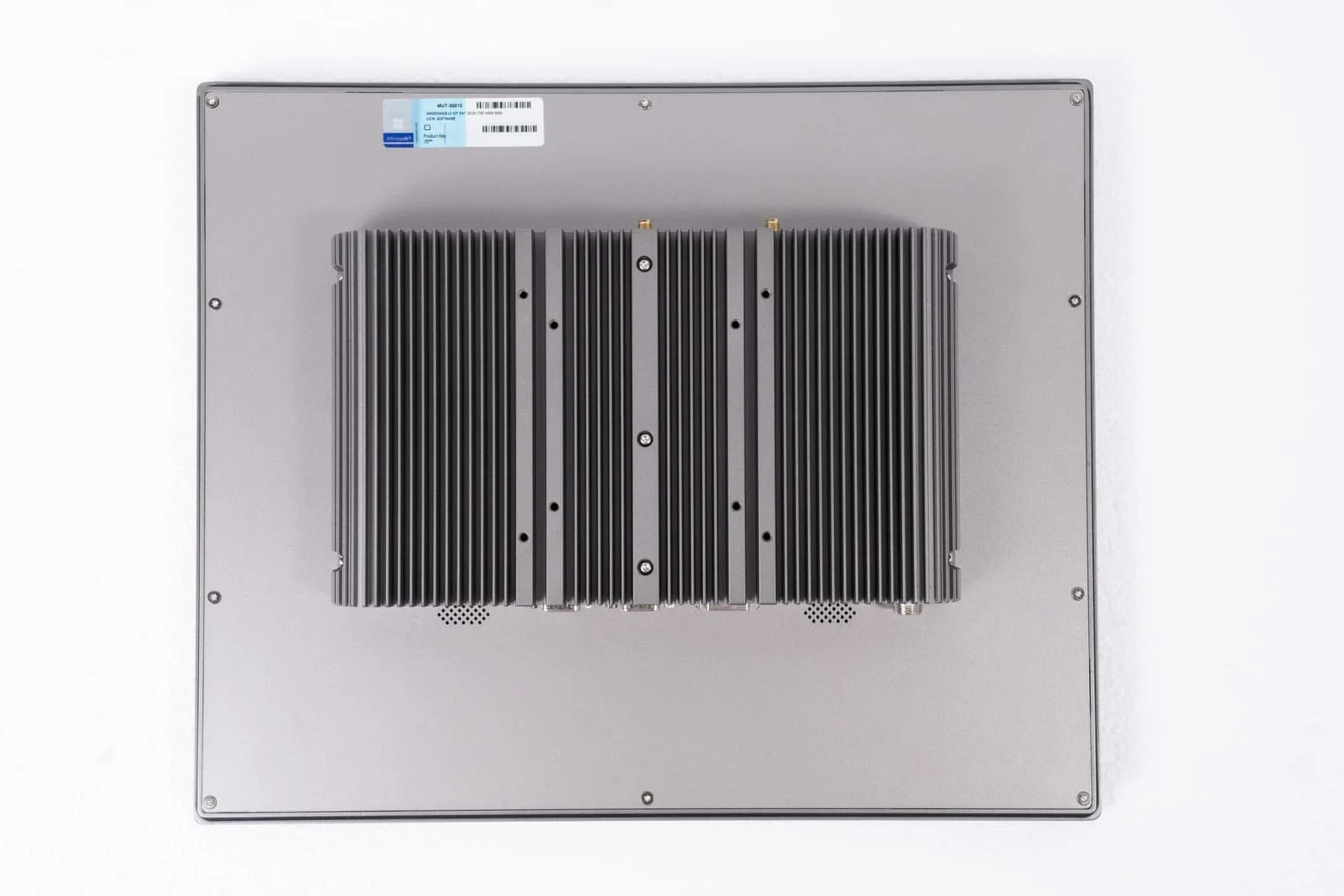

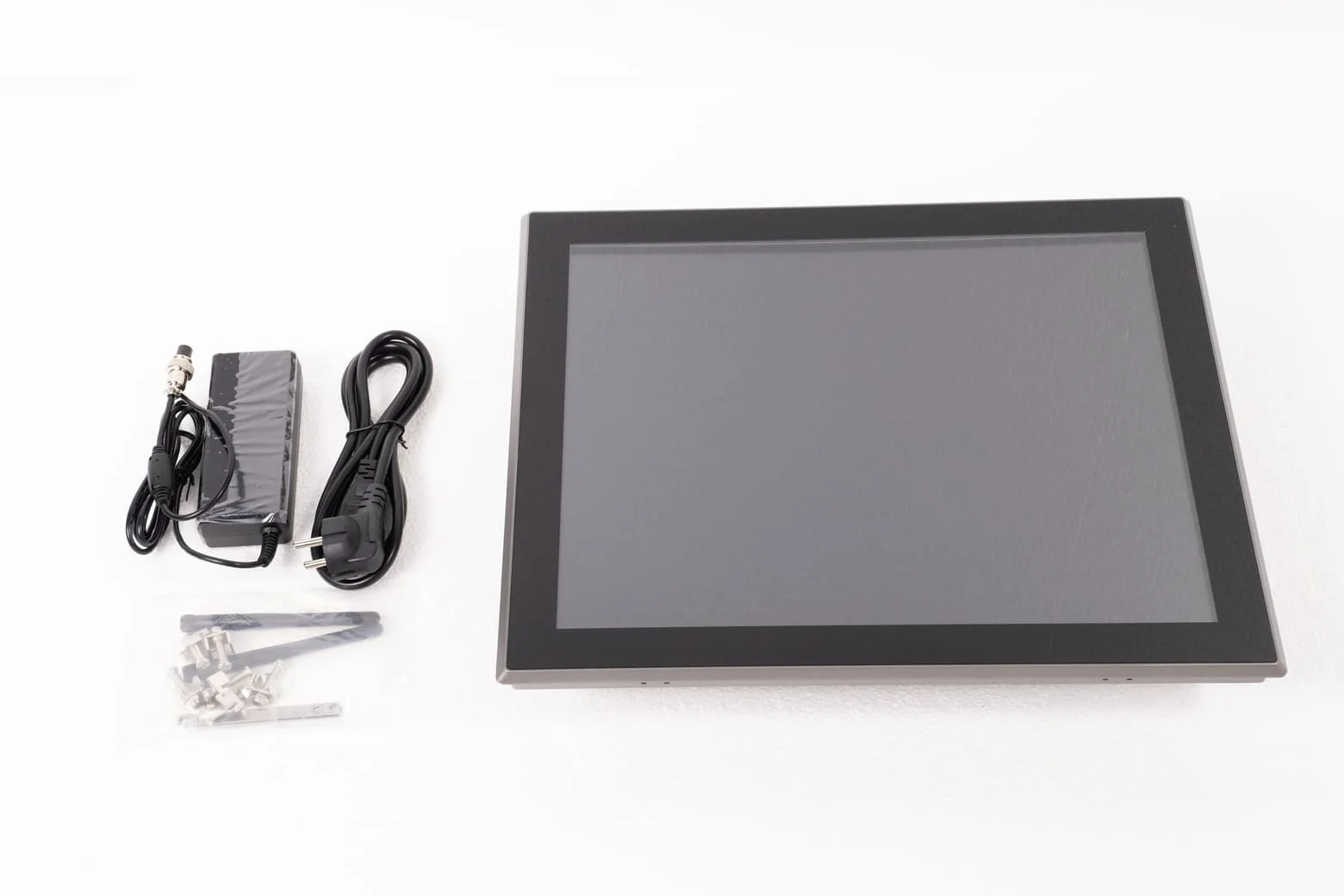

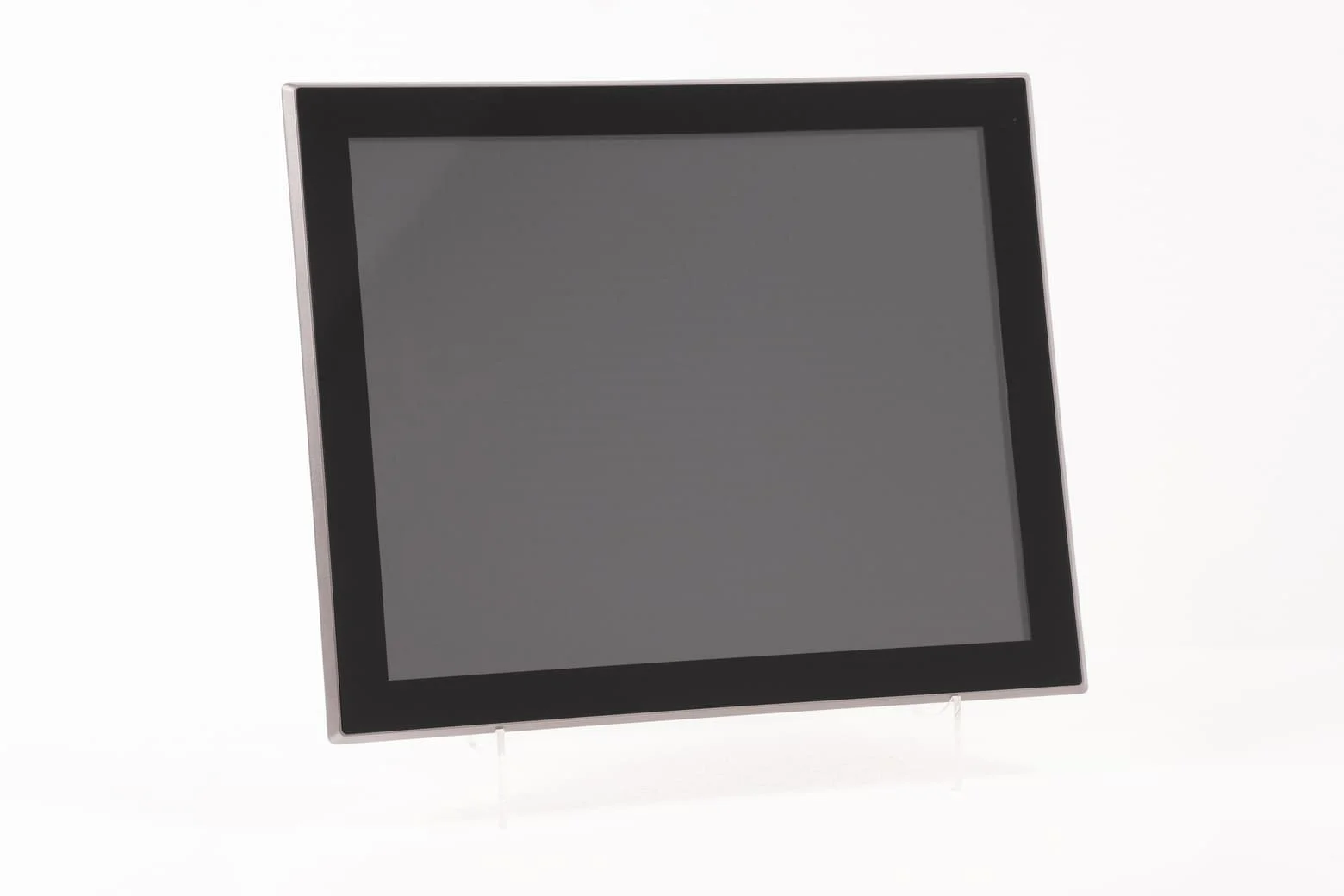

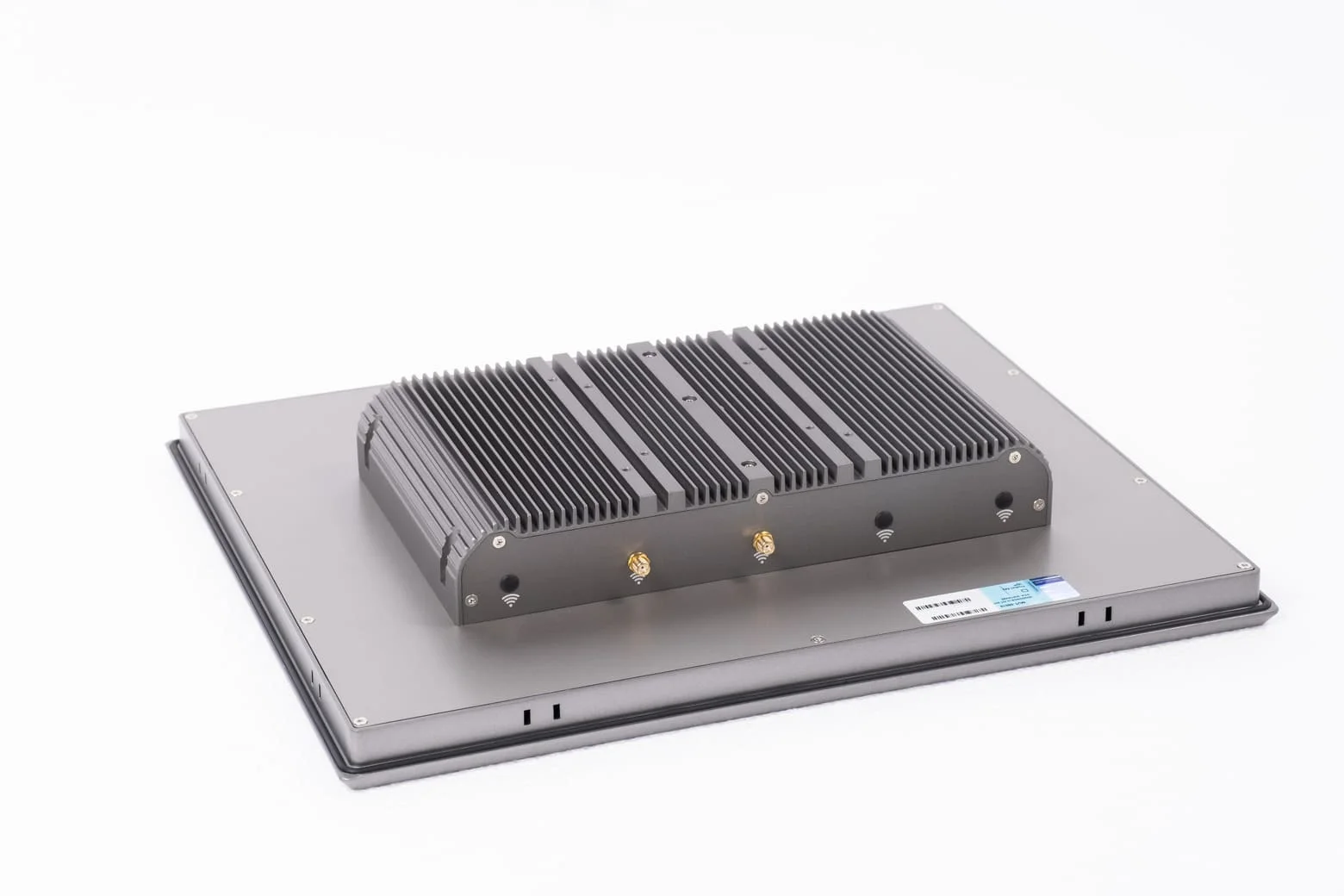

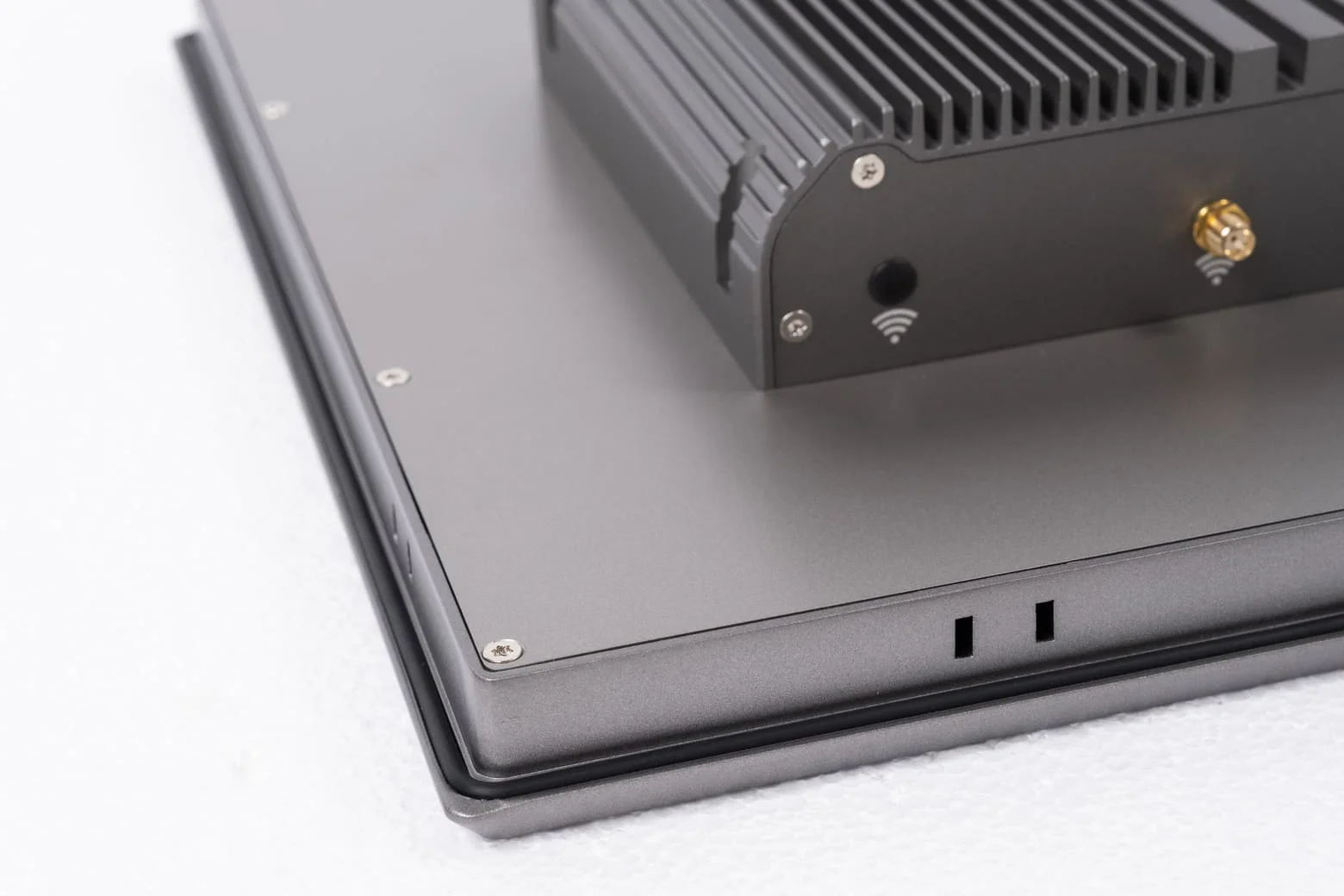

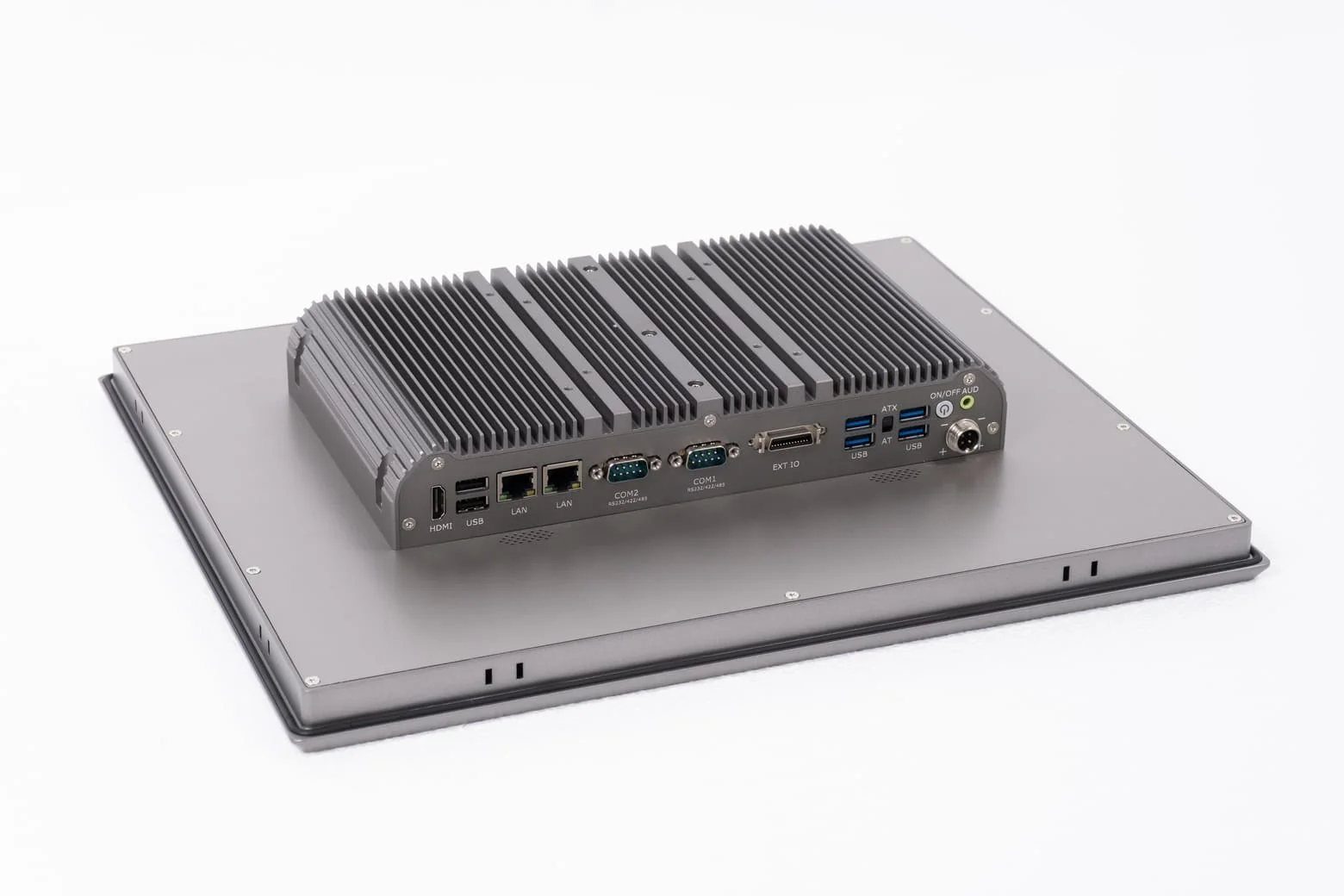

The BT-190-PCAP-KNU (i7) 19" flush-mounted all-in-one touchscreen computer is the ideal solution for industrial automation and touch applications. This flush-mounted all-in-one computer features a 19" touchscreen with a 1280x1024 resolution, 250 cd/m² brightness, and a housing for maximum protection against dust and moisture. It also features a 10th-generation Intel Core i7 processor, 8 GB of RAM, a 512 GB SSD, and multiple interfaces, including USB 2.0, USB 3.0, RS-232, RS-422/485, RJ45, audio line-out, and HDMI. The device also features passive cooling for a long service life and an IP65 protection rating. With its robust design and powerful performance, the BT-190-PCAP-KNU (i7) integrated touchscreen AIO is the ideal choice for any industrial automation or sensor application.
Display
Screen Size
19''
Resolution
1280х1024
Brightness
250 cd/m²
Touchscreen
Touchscreen Type
Projective Capacitive
Computer Specifications
Processor
Intel Core i7-10th gen
Memory
8GB SSD
Storage
512GB SSD

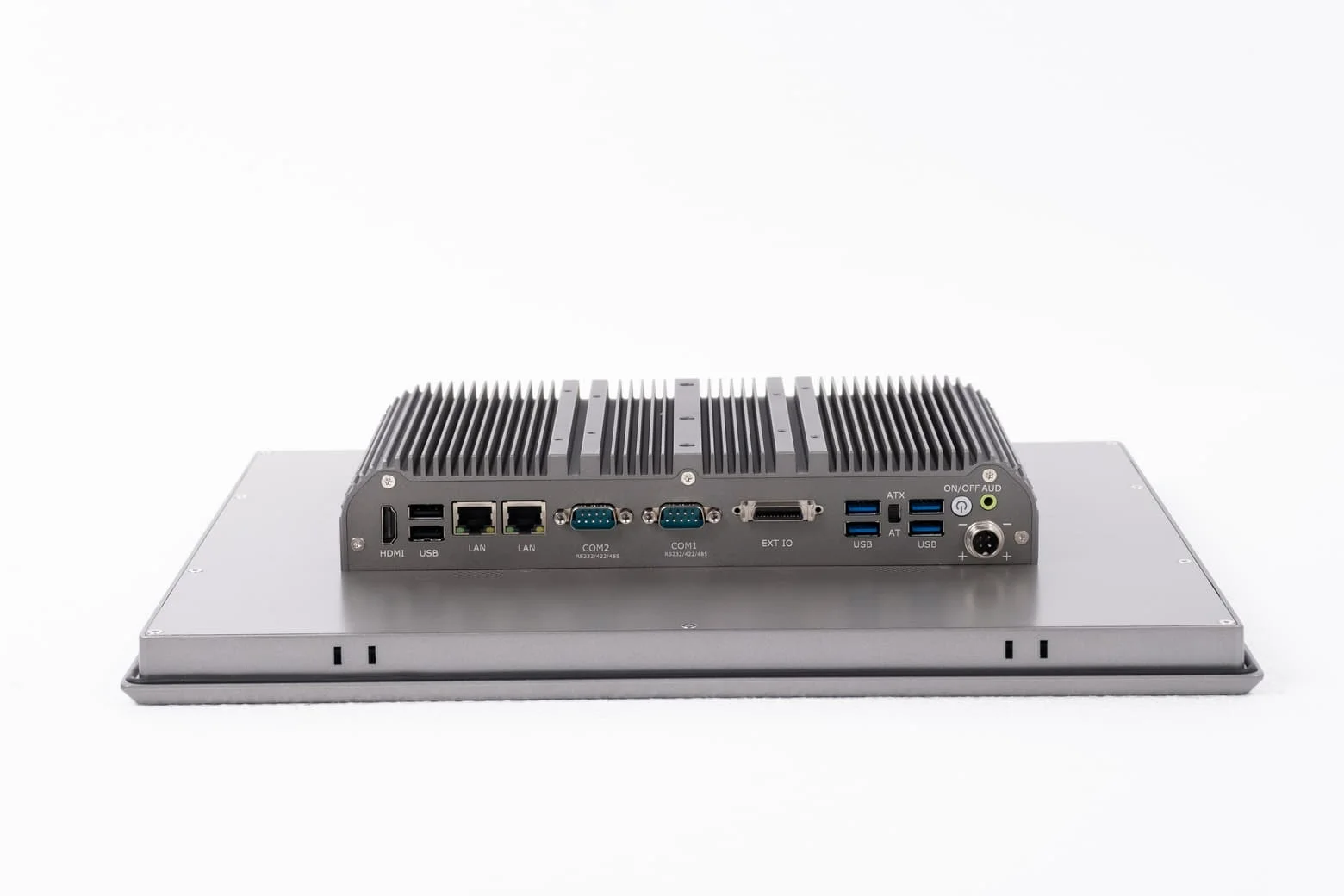

I/O Interfaces
USB 2.0
2
USB 3.0
4
Ethernet
2
RS232
2
RS422/485
2*RS232/422/485
HDMI
1
Other
1 x Audio Line-out, 1x Power On/Off Switch (AT/ATX), GPIO

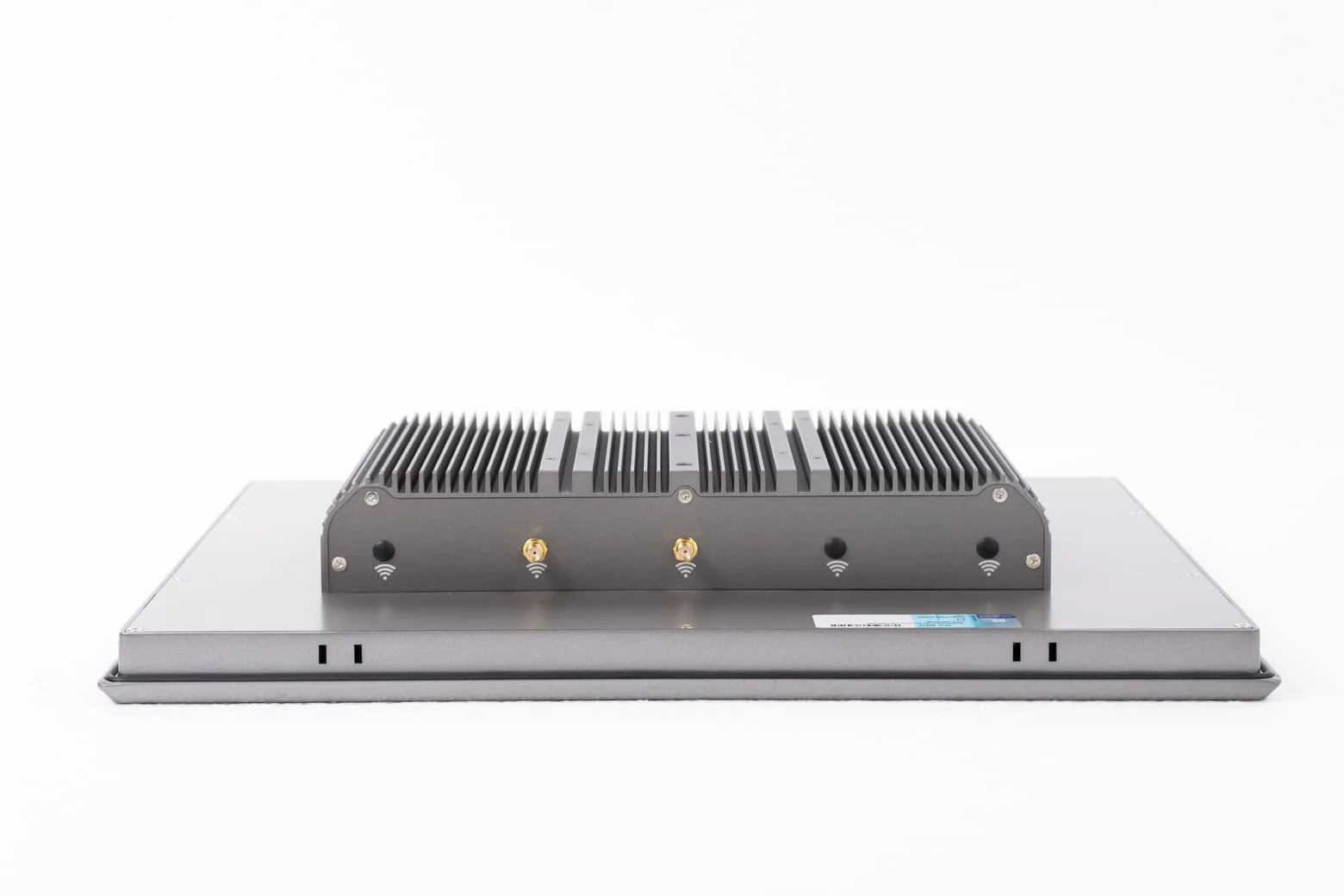

Additional slots
Additional slots
M.2 3042/3052 3G/4G/5G, SIM card slot on the motherboard M.2 2230 Wi-Fi, Bluetooth
