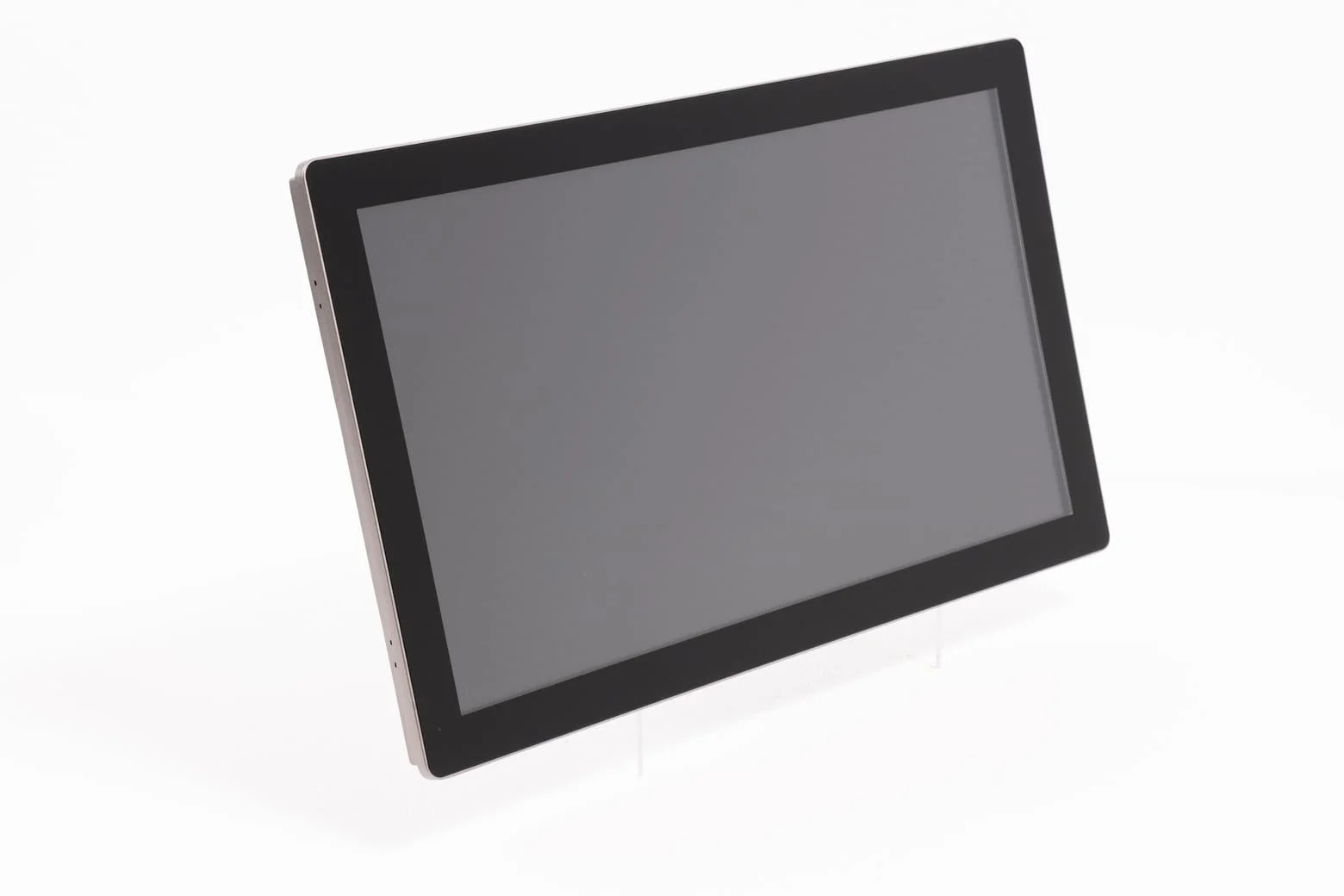

Introducing the BT-21.5-PCAP-KNU (i7)—a powerful embedded all-in-one computer with a touchscreen designed for industrial automation. This 21.5-inch all-in-one computer features a 1920x1080 resolution display with 250 cd/m² brightness, making it ideal for viewing detailed images and data. A 10th-generation Intel Core i7 processor and 8 GB of RAM ensure fast and reliable operation, while a 512 GB hard drive provides ample storage space.

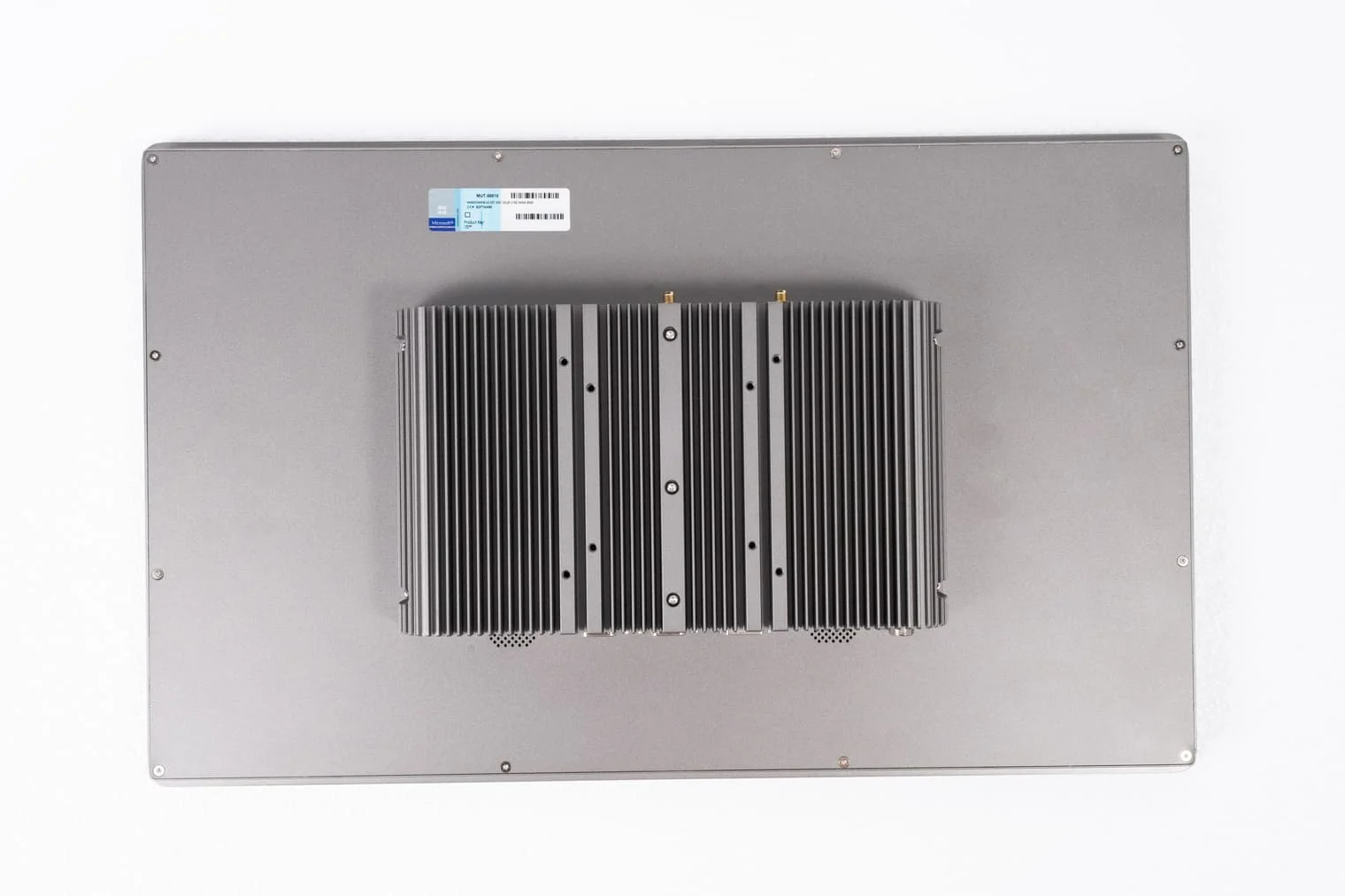

This model also features a variety of interfaces, including USB 2.0, USB 3.0, RS232, RS422/485, RJ45, audio output, and HDMI for easy integration into existing systems. A passive cooling system ensures a long service life and protection from dust and moisture with an IP65 rating on the front. This powerful all-in-one unit is ideal for industrial automation applications such as sensor monitoring or embedded system control.
Display
Screen Size
21.5
Resolution
1920х1080
Brightness
250 cd/m²
Touchscreen
Touchscreen Type
Projective Capacitive
Computer Specifications
Processor
Intel Core i7-10th gen
Memory
8GB SSD
Storage
512GB SSD

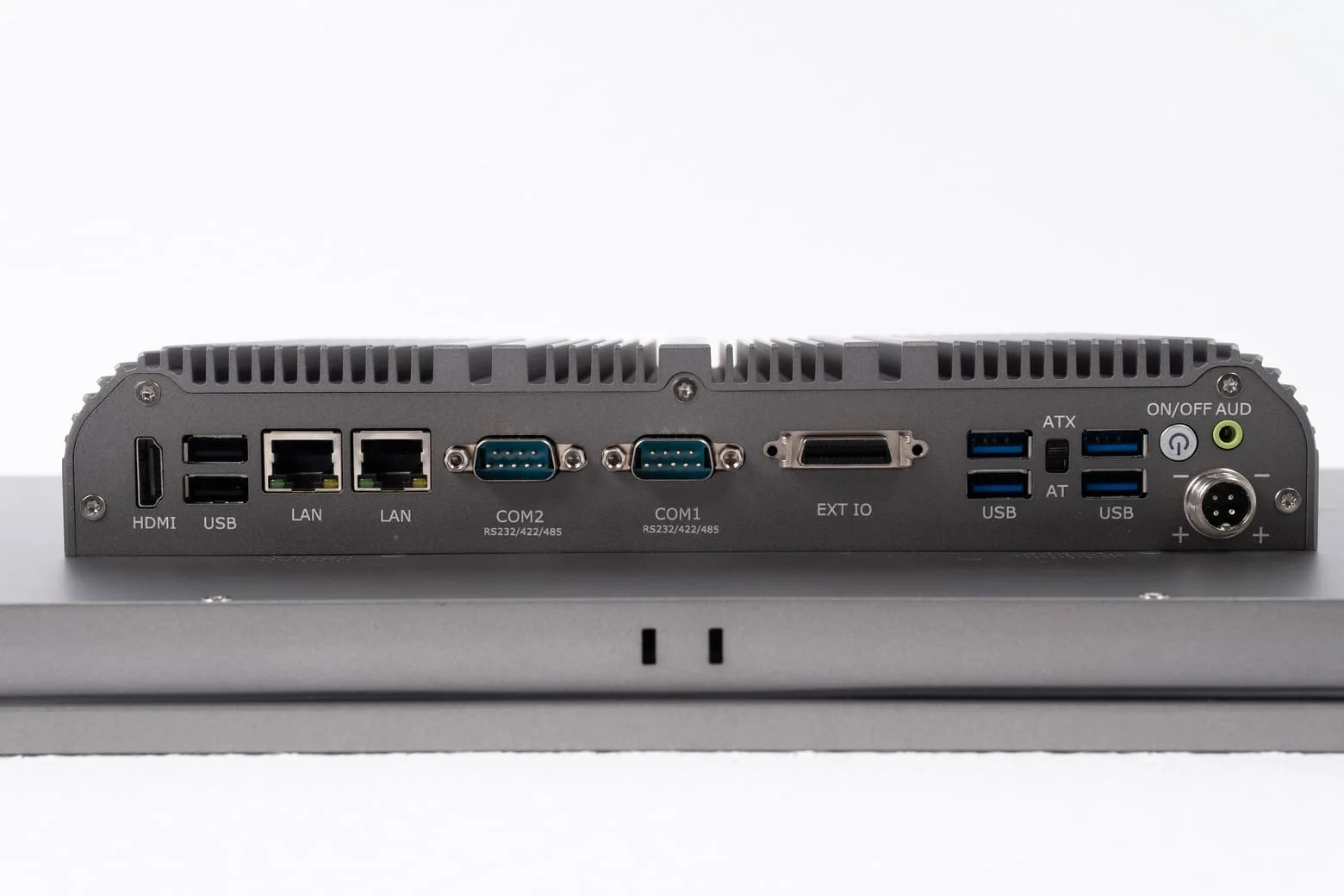

I/O Interfaces
USB 2.0
2
USB 3.0
4
Ethernet
1 (Optional: 2 ports)
RS232
1 port (Optional: 2 ports)
RS422/485
Optional, up to 2 ports
HDMI
1
Other
1 x Audio Line-out, 1x Power On/Off Switch (AT/ATX), GPIO
Additional slots
Additional slots
M.2 3042/3052 3G/4G/5G, SIM card slot on the motherboard M.2 2230 Wi-Fi, Bluetooth
